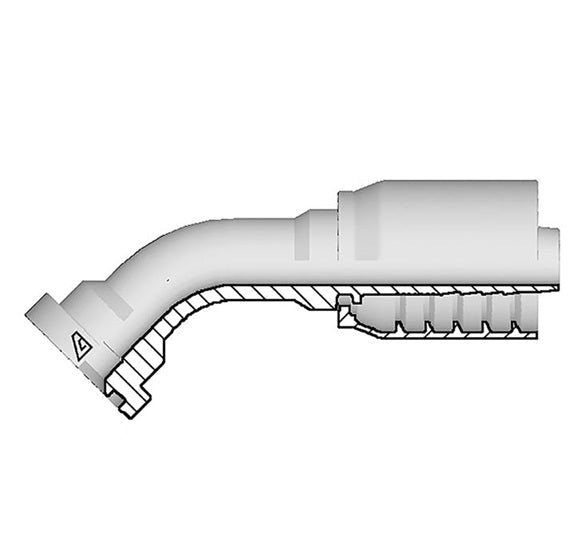

S-1620-C614 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -20 Code 61 Flange x -16 Hose ID | Steel

Save $35.02

$122.56

$122.56 - $122.56

$122.56

$87.54

$87.54 - $87.54

$87.54

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 45° Elbow | Code 61 Flange x Hose Barb

SAE J518

Specifications for Variant SKU: S-1620-C614 Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/4in Code 61 Flange, 1in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop Factor	Flange Dash Size	Weight
Part Number	Dash Size	in	mm	in	mm	mm	mm	Flange Dash Size	lbs/each
S-0812-C614	-08	1/2"	12.7mm	1.50"	38.1mm	50.4mm	26.0mm	-12	0.52 lbs
S-1212-C614	-12	3/4"	19.0mm	1.50"	38.1mm	71.0mm	28.0mm	-12	0.87 lbs
S-1216-C614	-12	3/4"	19.0mm	1.75"	44.5mm	68.0mm	29.0mm	-16	1.11 lbs
S-1616-C614	-16	1"	25.4mm	1.75"	44.5mm	88.0mm	35.0mm	-16	1.35 lbs
S-1620-C614	-16	1"	25.4mm	2.00"	50.8mm	88.9mm	32.5mm	-20	1.99 lbs
S-2020-C614	-20	1-1/4"	31.8mm	2.00"	50.8mm	94.3mm	38.5mm	-20	2.09 lbs
S-2024-C614	-20	1-1/4"	31.8mm	2.38"	60.3mm	99.0mm	40.0mm	-24	2.98 lbs
S-2424-C614	-24	1-1/2"	38.1mm	2.38"	60.3mm	99.8mm	43.0mm	-24	3.95 lbs
S-2432-C614	-24	1-1/2"	38.1mm	2.81"	71.4mm	140.0mm	56.5mm	-32	4.50 lbs
S-3232-C614	-32	2"	50.8mm	2.81"	71.4mm	154.0mm	54.0mm	-32	4.80 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
