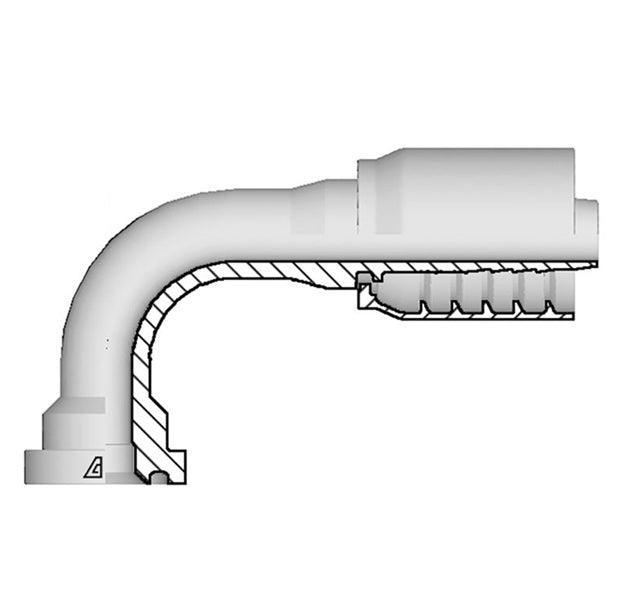

S-1620-C629 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -16 Code 62 Flange x -20 Hose ID | 6000 PSI | Steel

S-1620-C629 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -16 Code 62 Flange x -20 Hose ID | 6000 PSI | Steel

Save $42.75 Save $42.75
$149.63
$149.63 - $149.63
$149.63
$106.88
$106.88 - $106.88
$106.88

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 90° Elbow | Code 62 Flange x Hose Barb

- SAE J518

- 6000 PSI
Specifications for Variant SKU: S-1620-C629 Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Code 62 Flange, 1in Hose Barb
Material(s): Steel
Applicable Specs & Approvals: SAE J518
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size Q Flange C Cut-Off
Factor		 D Drop
Factor		 Flange Dash
Size		 Weight
Dash
Size		 in mm in mm mm mm lbs/each
S-1212-C629 -12 3/4" 19.0mm 1.63" 41.3mm 65mm 64.0mm -12 1.09 lbs
S-1216-C629 -12 3/4" 19.0mm 1.88" 47.6mm 65mm 66.0mm -16 1.27 lbs
S-1612-C629 -16 1" 25.4mm 1.63" 41.3mm 75mm 61.0mm -12 1.55 lbs
S-1616-C629 -16 1" 25.4mm 1.88" 47.6mm 75mm 74.0mm -16 1.66 lbs
S-1620-C629 -16 1" 25.4mm 2.13" 54.0mm 79mm 85.0mm -20 2.09 lbs
S-1624-C629 -16 1" 25.4mm 2.50" 63.5mm 79mm 85.0mm -24 2.82 lbs
S-2016-C624 -16 1" 25.4mm 1.88" 47.6mm - - -16 2.22 lbs
S-2020-C629 -20 1-1/4" 31.8mm 2.13" 54.0mm 96mm 91.0mm -20 2.45 lbs
S-2024-C629 -20 1-1/4" 31.8mm 2.50" 63.5mm 99mm 103.5mm -24 3.38 lbs
S-2420-C629 -24 1-1/2" 38.1mm 2.13" 54.0mm 112mm 85.0mm -20 3.91 lbs
S-2424-C629 -24 1-1/2" 38.1mm 2.50" 63.5mm 114mm 109.0mm -24 3.91 lbs
S-2432-C629 -24 1-1/2" 38.1mm 3.13" 79.4mm 118mm 121.5mm -32 4.78 lbs
S-3232-C629 -32 2" 50.8mm 3.13" 79.4mm 168.0mm 134.0mm -32 8.37 lbs
