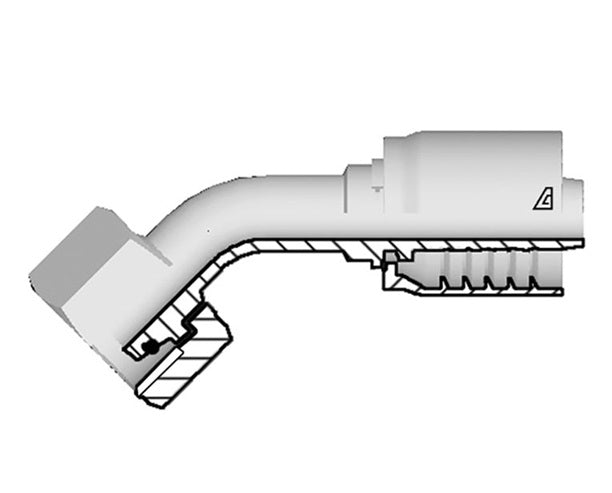

S-1642-FM4H Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | DIN 3865 Heavy | M42 Female Metric Swivel O-Ring 24° Seat x -16 Hose ID | Steel

Save $26.57

$93.00

$93.00 - $93.00

$93.00

$66.43

$66.43 - $66.43

$66.43

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 45° Elbow | Female Metric Swivel O-Ring 24° Seat x Hose Barb

DIN 3865 Heavy

Specifications for Variant SKU: S-1642-FM4H Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	45 Degree
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		Tube OD	C Cut-Off Factor	D Drop	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	mm	mm	lbs/each
S-1236-FM4H	-12	3/4"	19.0mm	-36	M36x2.0	-	71.0mm	33.0mm	46mm	1.23 lbs
S-1642-FM4H	-16	1"	25.4mm	-42	M42x2.0	-	110.0mm	35.5mm	50mm	1.87 lbs
S-2052-FM4H	-20	1-1/4"	31.8mm	-52	M52x2.0	-	111.0mm	45.0mm	60mm	2.75 lbs
