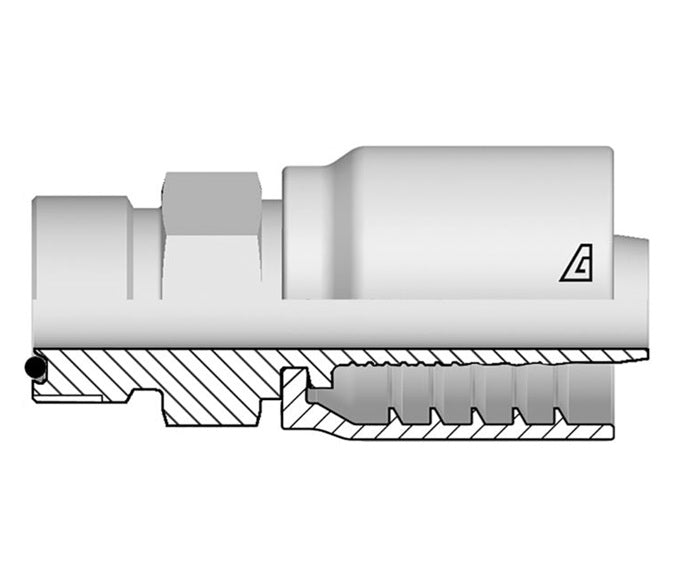

S-1642-MMSH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M42 Metric Male 24° Seat x -16 Hose ID | Steel

Name: S-1642-MMSH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M42 Metric Male 24° Seat x -16 Hose ID | Steel
Brand: Kuriyama
SKU: S-1642-MMSH Kuriyama
Price: 48.85 USD
Availability: InStock

Save $19.54

$68.39

$68.39 - $68.39

$68.39

$48.85

$48.85 - $48.85

$48.85

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Metric Male 24° Seat x Hose Barb

DIN 3865 Heavy

Specifications for Variant SKU: S-1642-MMSH Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		Tube OD	C Cut-Off Factor	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	mm	lbs/each
S-1236-MMSH	-12	3/4"	19.0mm	-36	M36x2.0	28mm	37.6mm	36.0mm	0.74 lbs
S-1642-MMSH	-16	1"	25.4mm	-42	M42x2.0	30mm	51.0mm	50.0mm	1.19 lbs
S-2052-MMSH	-20	1-1/4"	31.8mm	-52	M52x2.0	38mm	48.0mm	55.0mm	1.98 lbs
