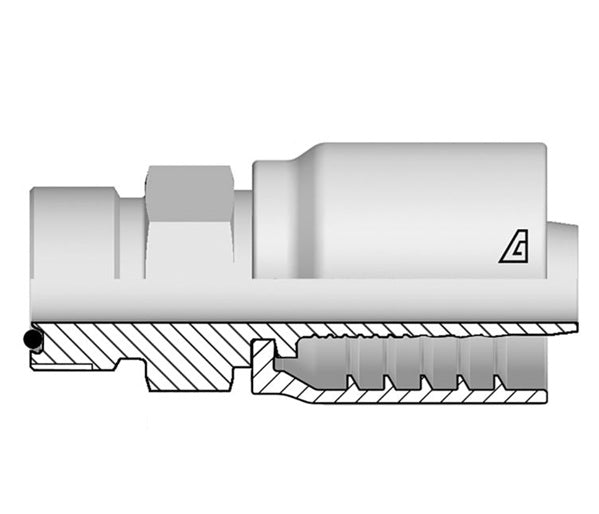

S-2045-MMSL Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3853 Light | M45 Metric Male 24° Seat x -20 Hose ID | Steel

S-2045-MMSL Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3853 Light | M45 Metric Male 24° Seat x -20 Hose ID | Steel

Save $6.32 Save $6.32
$56.87
$56.87 - $56.87
$56.87
$50.55
$50.55 - $50.55
$50.55

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Metric Male 24° Seat x Hose Barb

DIN 3853 Light
Specifications for Variant SKU: S-2045-MMSL Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size F Thread Tube
OD		 C
Cut-Off
Factor		 Hex Dia.
CH1		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm mm lbs/each
S-0616-MMSL -06 3/8" 9.5mm -16 M16x1.5 10mm 23.3mm 17mm 0.18 lbs
S-0618-MMSL -06 3/8" 9.5mm -18 M18x1.5 12mm 24.3mm 19mm 0.19 lbs
S-0622-MMSL -06 3/8" 9.5mm -22 M22x1.5 15mm 25.3mm 22mm 0.22 lbs
S-0822-MMSL -08 1/2" 12.7mm -22 M22x1.5 15mm 26.1mm 22mm 0.26 lbs
S-0826-MMSL -08 1/2" 12.7mm -26 M26x1.5 18mm 27.1mm 27mm 0.33 lbs
S-1026-MMSL -10 5/8" 15.9mm -26 M26x1.5 18mm 27.1mm 27mm 0.37 lbs
S-1230-MMSL -12 3/4" 19.0mm -30 M30x2 22mm 31.6mm 32mm 0.50 lbs
S-1636-MMSL -16 1" 25.4mm -36 M36x2 28mm 34.4mm 26mm 0.85 lbs
S-2045-MMSL -20 1-1/4" 31.8mm -45 M45x2 35mm 40.0mm 46mm 1.29 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
