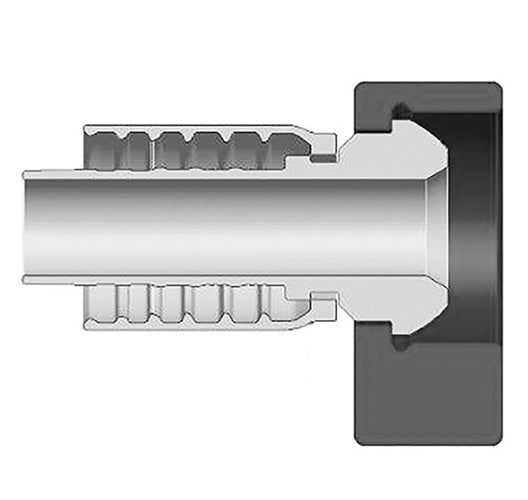

S-3232-MHUN Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting (No-Skive) | Figure 1502 | -32 Male Hammer Union Integral Fitting with Lug Nut x -32 Hose ID | Steel

S-3232-MHUN Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting (No-Skive) | Figure 1502 | -32 Male Hammer Union Integral Fitting with Lug Nut x -32 Hose ID | Steel

Save $157.52 Save $157.52
$551.31
$551.31 - $551.31
$551.31
$393.79
$393.79 - $393.79
$393.79

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | No-Skive | Figure 1502 | Male Hammer Union Integral Fitting with Lug Nut x Hose Barb

Use with Alfabiotech 4000, 5000 and Flexor Rig Hoses.
Specifications for Variant SKU: S-3232-MHUN Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Male Hammer Union | Fig. 1502 | Integral Fitting with Lug Nut
Part Number Dash Size Hose ID Size C
Cut-Off
Factor		 L
Overall Length		 Weight
in mm mm mm lbs/each
S-3232-MHUN -32 2" 50.8mm 65.2mm 153.2mm 16.17 lbs
Female Hammer Union | Fig. 1502 | Integral Fitting With Rubber Ring
Part Number Dash Size Hose ID Size C
Cut-Off
Factor		 L
Overall Length		 Weight
in mm mm mm lbs/each
S-3232-FHUN -32 2" 50.8mm 61.7mm 149.7mm 6.44 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
