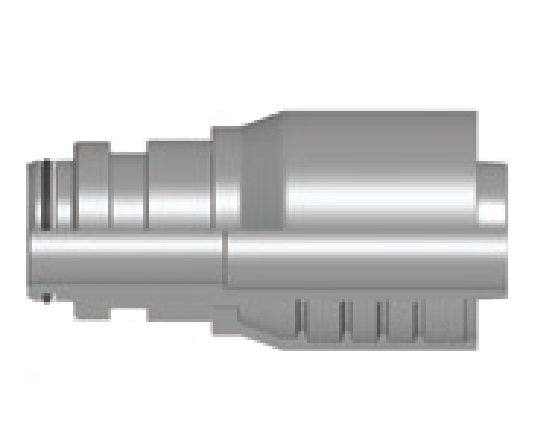

S-3232-SSLM Staplelok by Kuriyama | Super Rapid Staplelok Mining Fitting | -32 Hose Barb x -32 Male Staplelok End | Steel

S-3232-SSLM Staplelok by Kuriyama | Super Rapid Staplelok Mining Fitting | -32 Hose Barb x -32 Male Staplelok End | Steel

Save $29.38 Save $29.38
$189.54
$189.54 - $189.54
$189.54
$160.16
$160.16 - $160.16
$160.16

Kuriyama of America Inc.
Staplelok | Super Rapid Staplelok Mining Fitting | Hose Barb x Male Staplelok End

MSHA Approved Mining Fitting.
Specifications for Variant SKU: S-3232-SSLM Kuriyama
Brand: Staplelok
Series: Super Rapid Staplelok
Shape (Orientation): Straight
Ends Configuration: 2in Hose Barb, 56mm Male Staplelok
Material(s): Steel
Applicable Specs & Approvals: Applicable MSHA Standards
Specifications:
  • MSHA Approved
Super Rapid Staplelok Male
Part Number Dash Size Hose ID Coupling
Diameter		 C Cut-Off
Factor		 Weight
in mm Dash
Size		 Size (mm) (mm) (lbs/each)
S-1212-SSLM 12 3/4" 19.0mm 12 22mm 47.1mm 0.69 lbs
S-1616-SSLM 16 1" 25.4mm 16 31mm 66.1mm 1.25 lbs
S-3232-SSLM 32 2" 50.8mm 32 50mm 82.7mm 4.70 lbs
Super Rapid Staplelok Female
Part Number Dash Size Hose ID Coupling
Diameter		 C Cut-Off
Factor		 Weight
in mm Dash
Size		 Size (mm) (mm) (lbs/each)
S-3232-SSLF 32 2" 50.8mm 32 50mm 83.2mm 9.19 lbs
Super Rapid Staplelok Staples
Part Number Dash Size Hose ID Weight
in mm (lbs/each)
SRS-SS-12D 12 3/4" 19.0mm 0.10 lbs
SRS-SS-16D 16 1" 25.4mm 0.28 lbs
SRS-SS-24D 24 1-1/2" 38.1mm 0.36 lbs
SRS-SS-32D 32 2" 50.8mm 0.40 lbs
