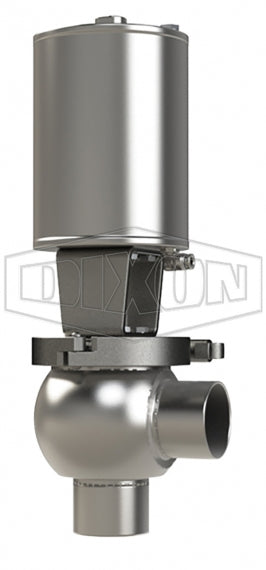

S01A20B3EE Dixon Valve 2" SSV Series Single Seat Valve, Shut-Off L Body, Weld, Double Acting Actuator (Air-To-Air) - Elastomer O-Ring Stem Seal - EPDM Wetted Elastomer

S01A20B3EE Dixon Valve 2" SSV Series Single Seat Valve, Shut-Off L Body, Weld, Double Acting Actuator (Air-To-Air) - Elastomer O-Ring Stem Seal - EPDM Wetted Elastomer

Save $799.59 Save $799.59
$1,998.98
$1,998.98 - $1,998.98
$1,998.98
$1,199.39
$1,199.39 - $1,199.39
$1,199.39

Dixon Sanitary Valves
SSV Series Single Seat Valve - 2" - Shut-Off L Body - Weld Ends

Used in sanitary processes for the isolation of fluids. These valves are found in the food processing, beverage, dairy, personal care, winery, brewery, and pet product markets.
Specifications for Variant SKU: S01A20B3EE Dixon
Shape (Orientation): 90 Degree
Material(s): 316L Stainless Steel, 304 Stainless Steel
Seal Material(s): EPDM
Features:
  • Maximum Operating Temperature: 266°F (130°C)
  • Surface ID finish:< 32Ra
  • Maximum Sterilization Temperature (20 min/max): 275°F (135°C)
  • Elastomers are FDA and 3A compliant
Construction:
  • All product contact steel components: 316L stainless steel
  • All non-product contact steel components: 304 stainless steel
Specifications:
  • 3A - authorization number 1655, 53-06 (compression-type valves).
Dimensions
Valve Size A A1 Stroke B C (Clamp) C (Weld) C2 (Clamp) C2 (Weld) D E (Clamp) E (Weld)
1" 7.58" 5.80" 0.41" 2.23" 2.50" 2" 3.20" 2" 2.78" 4.78" 3.78"
1.5" 8.80" 6.10" 0.77" 3.15" 2.75" 2.25" - - 4.11" 6.60" 5.60"
2" 9.05" 6.28" 0.77" 3.64" 3.50" 3" - - 4.11" 7.64" 6.64"
2.5" 11.36" 6.52" 1.04" 4.72" 3.50" 3" - - 6.08" 9.33" 8.33"
3" 11.61" 6.78" 1.04" 5.04" 3.75" 3.25" - - 6.08" 10.63" 9.63"
4" 12.10" 7.25" 1.04" 5.94" 4.50" 3.87" - - 6.08" 13.18" 11.93"
Part Number Size Actuator Type Stem Type Wetted Elastomers
S01A20B1EE 2" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
S01A20B2EE 2" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
S01A20B3EE 2" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
S01A20B1EV 2" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
S01A20B2EV 2" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
S01A20B3EV 2" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
S01A20B1PE 2" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal EPDM Wetted Elastomer
S01A20B2PE 2" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal EPDM Wetted Elastomer
S01A20B3PE 2" Double Acting Actuator (Air-To-Air) PTFE Plug Seal EPDM Wetted Elastomer
S01A20B1PV 2" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal FKM Wetted Elastomer
S01A20B2PV 2" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal FKM Wetted Elastomer
S01A20B3PV 2" Double Acting Actuator (Air-To-Air) PTFE Plug Seal FKM Wetted Elastomer
