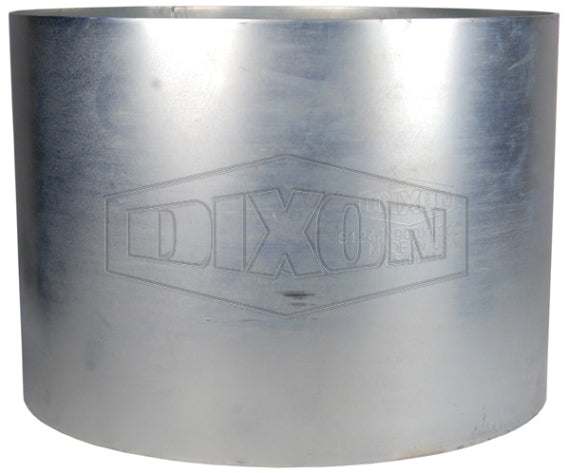

S1244X900X120CS Dixon King Crimp® | Large Sleeve | 12.44" Sleeve ID | 12" Hose ID | 0.120" Sleeve Wall Thickness | 9.00" Length | Carbon Steel

S1244X900X120CS Dixon King Crimp® | Large Sleeve | 12.44" Sleeve ID | 12" Hose ID | 0.120" Sleeve Wall Thickness | 9.00" Length | Carbon Steel

Save $2.05 Save $2.05
$92.33
$92.33 - $92.33
$92.33
$90.28
$90.28 - $90.28
$90.28

Dixon Valve & Coupling
King Crimp® Style | Large Sleeve

Recommended for low-pressure discharge and suction service for compatible liquids.
Specifications for Variant SKU: S1244X900X120CS Dixon
Brand: King Crimp®
Material(s): Carbon Steel
Safety Notes:
  • For use with King Crimp Style Short Combination Nipples.
  • Only use the crimp style shanks with the crimp style sleeves and ferrules. Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.
Carbon Steel
Part Number		 Hose
I.D.		 Sleeve I.D. Sleeve
Wall Thickness		 Sleeve Overall Length
S6438X550X120CS 6" 6.44" 0.120" 5.50"
S700X400X120CS 6" 7.00" 0.120" 4.00"

S838X600X120CS 8" 8.38" 0.120" 6.00"
S850X650X120CS 8" 8.50" 0.120" 6.50"
S875X600X120CS 8" 8.75" 0.120" 6.00"
S898X875X120CS 8" 8.98" 0.120" 8.75"
S900X400X090CS 8" 9.00" 0.090" 4.00"
S900X400X120CS 8" 9.00" 0.120" 4.00"
S900X600X120CS 8" 9.00" 0.120" 6.00"
S912X600X120CS 8" 9.12" 0.120" 6.00"
S915X600X120CS 8" 9.15" 0.120" 6.00"
S925X400X120CS 8" 9.25" 0.120" 4.00"
S925X600X120CS 8" 9.25" 0.120" 6.00"
S950X400X120CS 8" 9.50" 0.120" 4.00"
S950X600X120CS 8" 9.50" 0.120" 6.00"
S975X600X120CS 8" 9.75" 0.120" 6.00"

S1050X750X120CS 10" 10.50" 0.120" 7.50"
S1100X600X120CS 10" 11.00" 0.120" 6.00"
S1125X750X120CS 10" 11.25" 0.120" 7.50"
S1175X600X120CS 10" 11.75" 0.120" 6.00"
S1175X750X120CS 10" 11.75" 0.120" 7.50"

S1244X900X120CS 12" 12.44" 0.120" 9.00"
S1275X800X120CS 12" 12.75" 0.120" 8.00"
S1325X750X120CS 12" 13.25" 0.120" 7.50"
S1325X800X120CS 12" 13.25" 0.120" 8.00"
S1325X950X120CS 12" 13.25" 0.120" 9.50"

S1400X800X120CS 14" 14.00" 0.120" 8.00"
S1400X950X120CS 14" 14.00" 0.120" 9.50"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
