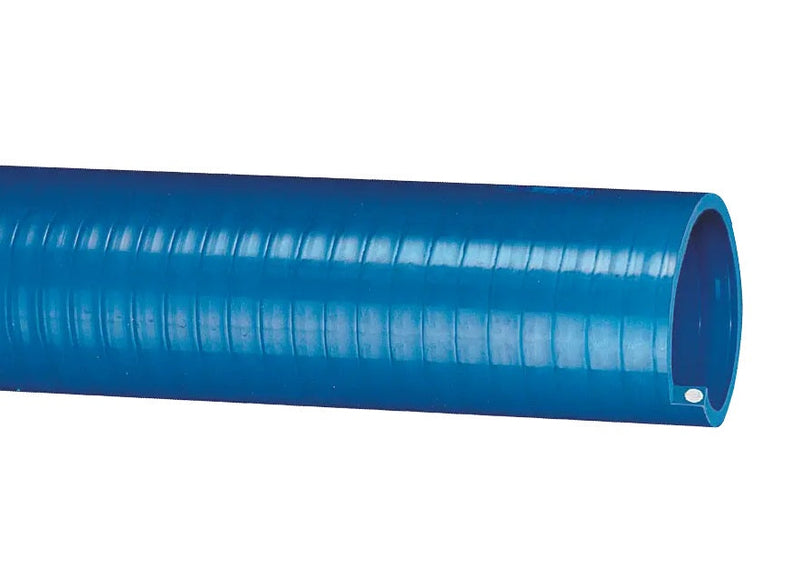

S200X100 Tigerflex® by Kuriyama | S™ Series | Heavy-Duty Liquid Suction Hose | PVC | 2" ID | 2.38" OD | 100ft Length

Name: S200X100 Tigerflex® by Kuriyama | S™ Series | Heavy-Duty Liquid Suction Hose | PVC | 2" ID | 2.38" OD | 100ft Length
Brand: Kuriyama
SKU: S200X100 Kuriyama | 100 |
Price: 418.2 USD
Availability: InStock

Save $151.86

$570.06

$570.06 - $570.06

$570.06

$418.20

$418.20 - $418.20

$418.20

p>Kuriyama of America Inc.
Tigerflex® | S™ Series | Heavy-Duty Liquid Suction Hose | PVC

Engineered for rugged water handling.

Ideal for irrigation lines, construction and rental dewatering pumps, trash pumps, and heavy-duty suction applications.

Made in the USA.

Package Quantity: 100 Foot

Specifications for Variant SKU: S200X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	S Series
Hose Color(s):	Blue
Internal Diameter:	2in
Outer Diameter:	2.38in
Tubing Construction:	PVC
Applicable Specs & Approvals:	RoHS Compliant

What are the Features?
Applications:	Irrigation lines. Pumps, rental and construction dewatering. Pumps, trash. Water suction - heavy duty.
Tube:	PVC.	Reinforcement:	Rigid PVC helix.
Cover:	-	Service Temperature Range:	-4°F (-20°C) to +150°F (+65°C) (Actual service temperature range is application dependent)
Specifications:	Phthalate Free (10) RoHS (11) For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
Smooth Outer Cover - Provides increased pressure rating and smooth surface for banding. Made in the USA. Note: Service life may vary depending on operating conditions and type of material being conveyed.

Part Number 100ft	ID		OD		Working Pressure (PSI)		Vacuum Rating in Hg		Min. Bending Radius	Weight
Part Number 100ft	in	mm	in	mm	at 68°F	at 104°F	at 68°F	at 104°F	at 68°F	lbs/ft
S100X100	1"	25.4mm	1.26"	32.0mm	100 PSI	65 PSI	Full	28 in Hg	3"	0.27lbs
S125X100	1-1/4"	31.7mm	1.56"	39.6mm	100 PSI	65 PSI	Full	26 in Hg	4"	0.36lbs
S150X100	1-1/2"	38.1mm	1.83"	46.5mm	100 PSI	65 PSI	Full	26 in Hg	5"	0.48lbs
S200X100	2"	50.8mm	2.38"	60.4mm	100 PSI	65 PSI	Full	26 in Hg	7"	0.71lbs
S300X100	3"	76.2mm	3.44"	87.4mm	70 PSI	45 PSI	Full	26 in Hg	10"	1.25lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
