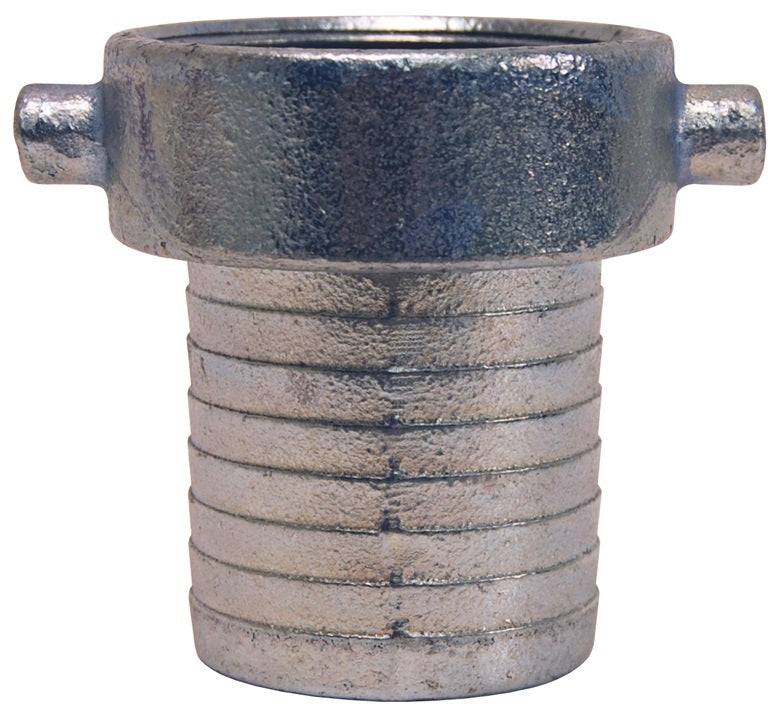

S22 by Dixon Valve | King Short Shank Suction Hose Coupling | Female Fitting | 1-1/2" Female NPSM x 1-1/2" Hose ID | Plated Iron Shank & Nut

S22 by Dixon Valve | King Short Shank Suction Hose Coupling | Female Fitting | 1-1/2" Female NPSM x 1-1/2" Hose ID | Plated Iron Shank & Nut

Save $1.80 Save $1.80
$21.36
$21.36 - $21.36
$21.36
$19.56
$19.56 - $19.56
$19.56

Dixon Valve
King Short Shank Suction Hose Coupling | Female Fitting | Female NPSM x Hose Barb

For suction or discharge of water.
Specifications for Variant SKU: S22 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Hose Barb, 1-1/2in Female NPSM
Material(s): Plated Iron
Seal Material(s): Rubber
Special Properties: Short
Features:
  • Complete couplings supplied with rubber gaskets.
Female Fitting
Plated Iron Shank & Nut
Female
Part Number		 Size
S12* 1"
S17 1-1/4"
S22 1-1/2"
S27 2"
S32 2-1/2"
S38 3"
S42 4"
S62 6"
Male Fitting
Plated Iron
Male
Part Number		 Size
S10 1"
S15 1-1/4"
S20 1-1/2"
S25 2"
S30 2-1/2"
S36 3"
S40 4"
Complete Coupling
Plated Iron Shank & Nut
Complete
Part Number		 Size
S33* 1"
S48 1-1/4"
S63 1-1/2"
S78 2"
S93 2-1/2"
S111 3"
S123 4"
S183 6"

* 1" fittings have a hex nut design.

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
