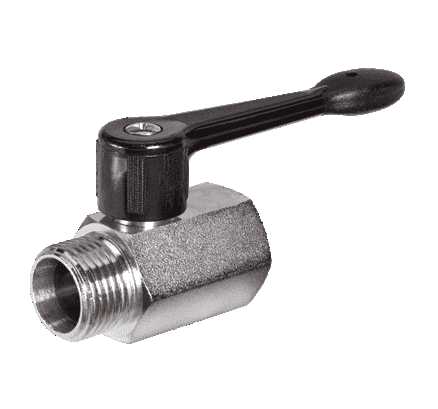

S34BZ0 by RuB Inc. | Mini Ball Valve | 1/4" Male NPT x 1/4" Female NPT | with Black Nylon Lever | Brass | Pack of 18

Save $17.52

$157.68

$157.68 - $157.68

$157.68

$140.16

$140.16 - $140.16

$140.16

RuB Inc. - Mini Ball Valves - S34 Series - Male NPT x Female NPT - with Black Nylon Lever

Package Quantity: 18 Units

Quantity

Specifications for Variant SKU: S34BZ0 RuB Inc \| 18 \|
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPT, 1/4in Female NPT
Material(s):	Chrome Plated Brass
Seal Material(s):	FPM

Quality:
24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts No maintenance ever required Handle clearly shows ball position Silicone-free lubricant on all seals Chrome plated brass ball for longer life
Body:
One piece drawn sand blasted brass body incorporating stem neck which provides excellent guidance of the stem Finest brass according to EN 12164 specification
Stem:
Two FPM O-rings at the stem for maximum safety
Sealing:
Pure PTFE self-lubricating seats with flexible-lip design
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Handle:
Lever and T-handle clearly show ball position Nylon back lever or T-handle removable with valve in service
Working Pressure & Temperature:
Maximum working pressure: 200 PSI non-shock cold working pressure -4°F/+200°F WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in Compliance with:
GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) RoHS Compliant (EU) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	G	CH
S34AZ0	1/8"	1/8"	0.236"	0.354"	1.712"	0.905"	0.826"
S34BZ0	1/4"	1/4"	0.314"	0.472"	1.712"	0.905"	0.826"
S34CZ0	3/8"	3/8"	0.314"	0.472"	1.712"	0.905"	0.826"
S34DZ0	1/2"	1/2"	0.393"	0.610"	2.106"	1.102"	0.984"

*DN shows the nominal flow diameter.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
