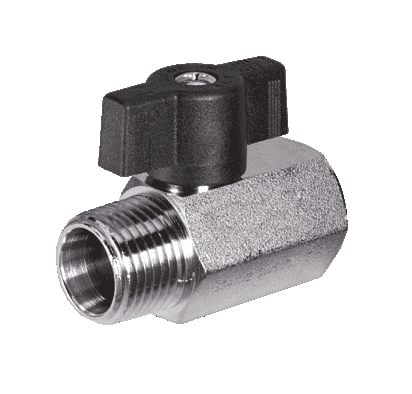

S34CZ1 by RuB Inc. | Mini Ball Valve | 3/8" Male NPT x 3/8" Female NPT | with Black Nylon T-Handle | Brass | Pack of 22

S34CZ1 by RuB Inc. | Mini Ball Valve | 3/8" Male NPT x 3/8" Female NPT | with Black Nylon T-Handle | Brass | Pack of 22

Save $9.65 Save $9.65
$175.22
$175.22 - $175.22
$175.22
$165.57
$165.57 - $165.57
$165.57

RuB Inc. - Mini Ball Valves - S34 Series - Male NPT x Female NPT - with Black Nylon T-Handle

Package Quantity: 22 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: S34CZ1 RuB Inc | 22 |
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPT, 3/8in Female NPT
Material(s): Chrome Plated Brass
Seal Material(s): FPM
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
Body:
  • One piece drawn sand blasted brass body incorporating stem neck which provides excellent guidance of the stem
  • Finest brass according to EN 12164 specification
Stem:
  • Two FPM O-rings at the stem for maximum safety
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Handle:
  • Lever and T-handle clearly show ball position
  • Nylon back lever or T-handle removable with valve in service
Working Pressure & Temperature:
  • Maximum working pressure: 200 PSI non-shock cold working pressure
  • -4°F/+200°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in Compliance with:
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • RoHS Compliant (EU)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G CH
S34AZ1 1/8" 1/8" 0.236" 0.354" 1.712" 0.905" 0.826"
S34BZ1 1/4" 1/4" 0.314" 0.472" 1.712" 0.905" 0.826"
S34CZ1 3/8" 3/8" 0.314" 0.472" 1.712" 0.905" 0.826"
S34DZ1 1/2" 1/2" 0.393" 0.610" 2.106" 1.102" 0.984"

*DN shows the nominal flow diameter.

RuB Inc

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
