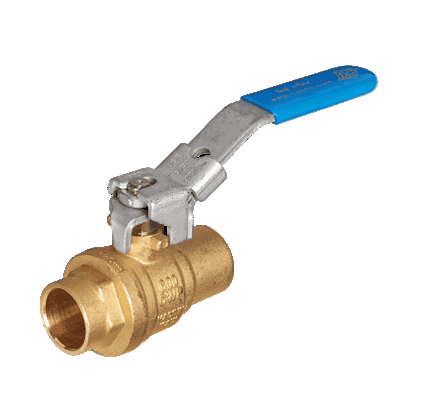

S42D15 by RuB Inc. | Full Port 2-Way Ball Valve | 1/2" Female Solder End x 1/2" Female Solder End | with Blue Lockable Handle | Brass | Pack of 10

S42D15 by RuB Inc. | Full Port 2-Way Ball Valve | 1/2" Female Solder End x 1/2" Female Solder End | with Blue Lockable Handle | Brass | Pack of 10

Save $53.92 Save $53.92
$188.72
$188.72 - $188.72
$188.72
$134.80
$134.80 - $134.80
$134.80

RuB Inc. - Full Port 2-Way Ball Valves - S42 Series - Solder Ends (CxC) with Blue Lockable Handle

Package Quantity: 10 Units

Specifications for Variant SKU: S42D15 RuB Inc | 10 |
Shape (Orientation): Straight
Ends Configuration: 1/2in Solder End, 1/2in Solder End, Some Ends Match
Material(s): Brass
Seal Material(s): PTFE
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stresses at stem
Body:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
  • Blowout-proof nickel plated brass stem
  • Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • Solder end female by female connections
Flow:
  • Full port to DIN 3357 for maximum flow
Handle:
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Handle removable with valve in service
Working Pressure & Temperature:
  • Maximum working pressure 600 PSI (CWP)
  • *150 psig non-shock steam working pressure. Not suitable for throttling steam
  • -40°F/+366°F (For solder joints limits consult MSS-SP-104)
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
  • AISI 316 stainless steel ball and/or stem
  • Glass filled PTFE seals
  • AISI 430 stainless steel handle
  • Custom design
Approved by or in Compliance with:
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • TSSA (Canada)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States & Canada)
  • Meeting WW-V-35C Federal U.S. Specification
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D (Nominal) D (Actual) DN I L G
S42D15 1/2" 1/2" 0.6271" 0.590" 0.492" 2.244" 1.181"
S42E15 3/4" 3/4" 0.8771" 0.787" 0.748" 2.854" 1.476"
S42F15 1" 1" 1.1279" 0.984" 0.905" 3.346" 1.673"
S42G15 1-1/4" 1-1/4" 1.3779" 1.259" 0.964" 3.819" 1.909"
S42H15 1-1/2" 1-1/2" 1.6279" 1.574" 1.102" 4.488" 2.244"
S42I15 2" 2" 2.1279" 1.968" 1.338" 5.433" 2.716"
S42L15 2-1/2" 2-1/2" 2.628" 2.559" 1.476" 6.614" 3.307"
S42M15 3" 3" 3.128" 3.149" 1.673" 7.598" 3.799"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of valves over 2" is slightly different.

RuB Inc

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
