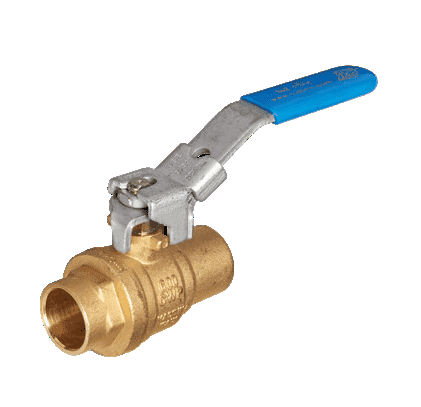

S42I15 by RuB Inc. | Full Port 2-Way Ball Valve | 2" Female Solder End x 2" Female Solder End | with Blue Lockable Handle | Brass | Pack of 3

Save $105.76

$370.16

$370.16 - $370.16

$370.16

$264.40

$264.40 - $264.40

$264.40

RuB Inc. - Full Port 2-Way Ball Valves - S42 Series - Solder Ends (CxC) with Blue Lockable Handle

Package Quantity: 3 Units

Specifications for Variant SKU: S42I15 RuB Inc \| 3 \|
Shape (Orientation):	Straight
Ends Configuration:	2in Solder End, 2in Solder End, Some Ends Match
Material(s):	Brass
Seal Material(s):	PTFE

Quality:
24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts Handle clearly shows ball position Silicone-free lubricant on all seals Chrome plated brass ball for longer life Handle stops on body to avoid stresses at stem
Body:
Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
Blowout-proof nickel plated brass stem Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
Sealing:
Pure PTFE self-lubricating seats with flexible-lip design
Threads:
Solder end female by female connections
Flow:
Full port to DIN 3357 for maximum flow
Handle:
Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load Handle removable with valve in service
Working Pressure & Temperature:
Maximum working pressure 600 PSI (CWP) *150 psig non-shock steam working pressure. Not suitable for throttling steam -40°F/+366°F (For solder joints limits consult MSS-SP-104) WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
AISI 316 stainless steel ball and/or stem Glass filled PTFE seals AISI 430 stainless steel handle Custom design
Approved by or in Compliance with:
GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) TSSA (Canada) RoHS Compliant (EU) Underwriters Laboratories (United States & Canada) Meeting WW-V-35C Federal U.S. Specification NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D (Nominal)	D (Actual)	DN	I	L	G
S42D15	1/2"	1/2"	0.6271"	0.590"	0.492"	2.244"	1.181"
S42E15	3/4"	3/4"	0.8771"	0.787"	0.748"	2.854"	1.476"
S42F15	1"	1"	1.1279"	0.984"	0.905"	3.346"	1.673"
S42G15	1-1/4"	1-1/4"	1.3779"	1.259"	0.964"	3.819"	1.909"
S42H15	1-1/2"	1-1/2"	1.6279"	1.574"	1.102"	4.488"	2.244"
S42I15	2"	2"	2.1279"	1.968"	1.338"	5.433"	2.716"
S42L15	2-1/2"	2-1/2"	2.628"	2.559"	1.476"	6.614"	3.307"
S42M15	3"	3"	3.128"	3.149"	1.673"	7.598"	3.799"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of valves over 2" is slightly different.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
