S5027Z ZSi-Foster | Strut Mount Beta Clamp | Standard Series | For 1-1/4" Pipe | Polypropylene/Steel

S5027Z by ZSi-Foster | Strut Mount Beta Clamp | Standard Series | For 1-1/4" Pipe | Polypropylene/Steel

Save $0.70 Save $0.70
$6.92
$6.92 - $6.92
$6.92
$6.22
$6.22 - $6.22
$6.22

ZSI-Foster
Beta Hydraulic Clamps - Standard Series - Strut Mount - Polypropylene / Steel

- Cushions are Polypropylene (Green Color).

- Recommended for systems with less than 1,500 psi (103 bar) without dynamic loads.

- Use for standard hydraulics, general pipe construction, electrical cables, and general duty piping applications subject to moderate levels of shock and vibration.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: S5027Z ZSI-Foster
Series: Standard Series
Maximum Clamp I.D.: 1.25
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: Steel
  • Cushion: Polypropylene (Green)
Installation:

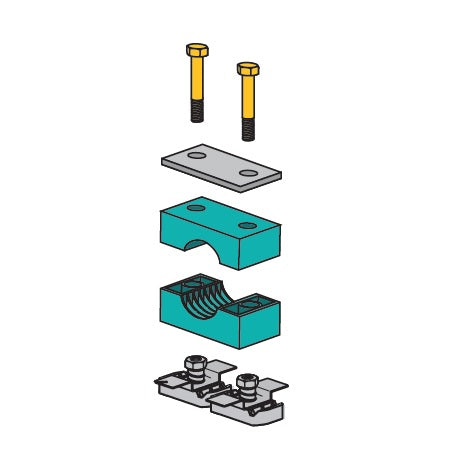

Assembly Includes:
Quantity Description
2 Each Hex Bolts
1 Each Cover Plate
1 Set Cushions
2 Each Strut Nuts
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Bolt Length
S1007Z - 1/8" 1-1/4"
S1004Z S2009Z 1/4" Tube: 1-1/4"
Pipe: 1-3/8"
S1006Z S2011Z 3/8" Tube: 1-1/4"
Pipe: 1-3/8"
S2008Z S3014Z 1/2" Tube: 1-3/8"
Pipe: 1-1/2"
S2010Z - 5/8" 1-3/8"
S3012Z S4017Z 3/4" Tube: 1-1/2"
Pipe: 1-3/4"
S3015Z - 7/8" 1-1/2"
S3016Z S5021Z 1" Tube: 1-1/2"
Pipe: 2-1/2"
S4018Z - 1-1/8" 1-3/4"
S5020Z S5027Z 1-1/4" 2-1/2"
S5024Z S6030Z 1-1/2" Tube: 2-1/2"
Pipe: 2-3/4"
S6028Z - 1-3/4" 2-3/4"
S6032Z S7038Z 2" Tube: 2-3/4"
Pipe: 4"
S7036Z - 2-1/4" 4"
S7040Z - 2-1/2" 4"
S7044Z - 2-3/4" 4"
S7048Z - 3" 4"
