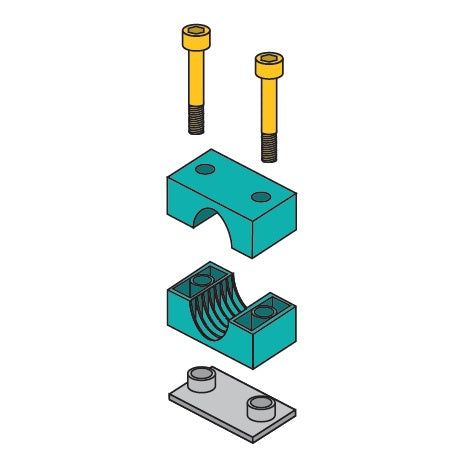

S6030SI ZSi-Foster | Weld Mount Beta Clamp | Standard Series | For 1-1/2" Pipe | Cap Screw Assembly | Polypropylene/Steel

S6030SI by ZSi-Foster | Weld Mount Beta Clamp | Standard Series | For 1-1/2" Pipe | Cap Screw Assembly | Polypropylene/Steel

Save $0.68 Save $0.68
$6.68
$6.68 - $6.68
$6.68
$6.00
$6.00 - $6.00
$6.00

ZSI-Foster
Beta Hydraulic Clamps - Standard Series - Weld Mount - Cap Screw Assembly - Polypropylene / Steel

- Cushions are Polypropylene (Green Color).

- Recommended for systems with less than 1,500 psi (103 bar) without dynamic loads.

- Use for standard hydraulics, general pipe construction, electrical cables, and general duty piping applications subject to moderate levels of shock and vibration.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: S6030SI ZSI-Foster
Series: Standard Series
Maximum Clamp I.D.: 1.5
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: Steel
  • Cushion: Polypropylene (Green)
Installation:
Assembly Includes:
Quantity Description
2 Each Cap Screws
1 Set Cushions
1 Each Weld Plate
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Bolt Length
- S1007SI 1/8" 1-1/4"
S1004SI S2009SI 1/4" Tube: 1-1/4"
Pipe: 1-3/8"
S1006SI S2011SI 3/8" Tube: 1-1/4"
Pipe: 1-3/8"
S2008SI S3014SI 1/2" Tube: 1-3/8"
Pipe: 1-1/2"
S2010SI - 5/8" 1-3/8"
S3012SI S4017SI 3/4" Tube: 1-1/2"
Pipe: 1-3/4"
S3015SI - 7/8" 1-1/2"
S3016SI S5021SI 1" Tube: 1-1/2"
Pipe: 2-1/2"
S4018SI - 1-1/8" 1-3/4"
S5020SI S5027SI 1-1/4" 2-1/2"
S5024SI S6030SI 1-1/2" Tube: 2-1/2"
Pipe: 2-3/4"
S6028SI - 1-3/4" 2-3/4"
S6032SI S7038SI 2" Tube: 2-3/4"
Pipe: 4"
S7036SI - 2-1/4" 4"
S7040SI - 2-1/2" 4"
