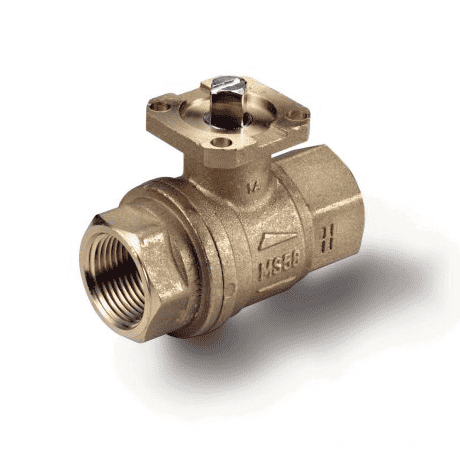

S64D41 by RuB Inc. | Ball Valve For Actuation | 1/2" Female NPT x 1/2" Female NPT | with Brass Trim | Brass | Pack of 32

S64D41 by RuB Inc. | Ball Valve For Actuation | 1/2" Female NPT x 1/2" Female NPT | with Brass Trim | Brass | Pack of 32

Save $285.70 Save $285.70
$999.94
$999.94 - $999.94
$999.94
$714.24
$714.24 - $714.24
$714.24

RuB Inc. - Ball Valves For Actuation - S.6441 Series - Female NPT x Female NPT - with Brass Trim

Package Quantity: 32 Units

Specifications for Variant SKU: S64D41 RuB Inc | 32 |
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s): Brass
Seal Material(s): FPM
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
Body:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Integrated ISO 5211 and DIN 3337 mounting flange for universal connection to actuator
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
  • Two FPM O-rings at the stem for maximum safety
  • Blowout-proof nickel plated brass stem
Sealing:
  • Reinforced PTFE self- lubricating seats with flexible-lip and wear compensation design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Flow:
  • 100% full port for maximum flow
Handle:
  • Integrated sturdy ISO 5211 flange allows direct mounting of electric and pneumatic actuators, with no bracket or coupling required.
Working Pressure & Temperature:
  • 600 PSI up to 2", 450 PSI over 2" non-shock cold working pressure
  • -4°F/ +350°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in compliance with:
  • Water Regulations Advisory Scheme (United Kingdom)
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • RoHS Compliant (EU)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G H CH ØA B C E F Flange ConnectionDIN ISO 5211 DIN 3337
S64D41 1/2" 1/2" 0.590" 0.610" 2.598" 1.201" 1.220" 1.063" 1.417" 0.354" 0.220" 0.984" 0.295" F03
S64E41 3/4" 3/4" 0.787" 0.708" 2.933" 1.456" 1.515" 1.259" 1.417" 0.354" 0.220" 0.984" 0.334" F03
S64F41 1" 1" 0.984" 0.826" 3.562" 1.791" 1.673" 1.614" 1.417" 0.354" 0.220" 0.984" 0.334" F03
S64G41 1-1/4" 1-1/4" 1.259" 0.905" 4.094" 2.047" 2.185" 1.968" 1.968" 0.551" 0.259" 1.378" 0.570" F05
S64H41 1-1/2" 1-1/2" 1.575" 0.964" 4.606" 2.322" 2.441" 2.165" 1.968" 0.551" 0.259" 1.378" 0.570" F05
S64I41 2" 2" 1.968" 1.043" 5.314" 2.657" 2.716" 2.756" 1.968" 0.551" 0.259" 1.378" 0.570" F05
RuB Inc

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
