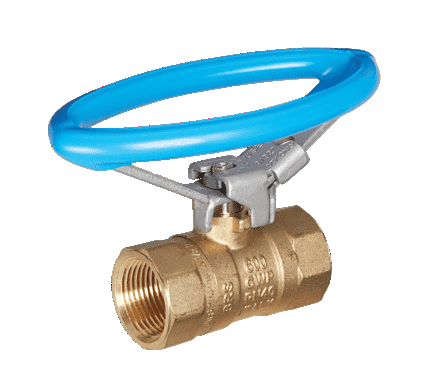

S71F43 by RuB Inc. | Standard Port 2-Way Ball Valve | 1" Female NPT x 1" Female NPT | with Oval Handle | Brass | Pack of 11

Save $157.81

$552.34

$552.34 - $552.34

$552.34

$394.53

$394.53 - $394.53

$394.53

RuB Inc. - Standard Port 2-Way Ball Valves - S71 Series - Female NPT x Female NPT with Oval Handle

Package Quantity: 11 Units

Specifications for Variant SKU: S71F43 RuB Inc \| 11 \|
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Female NPT, Some Ends Match
Material(s):	Brass
Seal Material(s):	PTFE

Quality:
24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts Handle clearly shows ball position Silicone-free lubricant on all seals Chrome plated brass ball for longer life Handle stops on body to avoid stresses at stem
Body:
Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
Blowout-proof nickel plated brass stem Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance Triple stem seals in sizes over 2-1/2"
Sealing:
Pure PTFE self-lubricating seats with flexible-lip design
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Flow:
Standard port for compact design
Handle:
Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection Handle removable with valve in service
Working Pressure & Temperature:
Maximum working pressure 600 PSI (CWP) Steam rating 150 PSI (WSP) up thru 2" -40°F/+366°F WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
AISI 316 stainless steel ball and/or stem Glass filled PTFE seals Custom design
Approved by or in Compliance with:
Canadian standards Association (United States, Canada) Hygiene and epidemic center in Moscow city (Russia) RoHS Compliant (EU) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	G	CH
S71D43	1/2"	1/2"	0.453"	0.610"	2.126"	1.043"	0.984"
S71E43	3/4"	3/4"	0.591"	0.669"	2.441"	1.220"	1.220"
S71F43	1"	1"	0.787"	0.827"	2.835"	1.417"	1.496"
S71G43	1-1/4"	1-1/4"	0.984"	0.905"	3.464"	1.732"	1.929"
S71H43	1-1/2"	1-1/2"	1.260"	0.905"	3.779"	1.890"	2.126"
S71I43	2"	2"	1.575"	1.043"	4.409"	2.205"	2.677"

*DN shows the nominal flow diameter. Stem configuration of valves over 2-1/2" is slightly different.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
