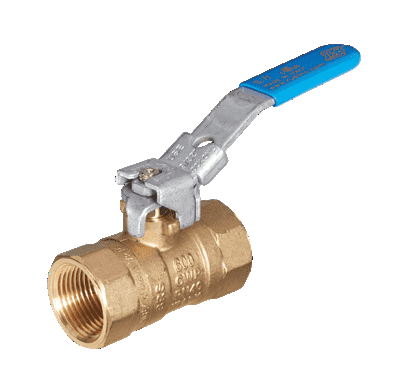

S71L45 by RuB Inc. | Standard Port 2-Way Ball Valve | 2-1/2" Female NPT x 2-1/2" Female NPT | with Blue Lockable Handle | Brass | Pack of 4

S71L45 by RuB Inc. | Standard Port 2-Way Ball Valve | 2-1/2" Female NPT x 2-1/2" Female NPT | with Blue Lockable Handle | Brass | Pack of 4

Save $242.90 Save $242.90
$850.15
$850.15 - $850.15
$850.15
$607.25
$607.25 - $607.25
$607.25

RuB Inc. - Standard Port 2-Way Ball Valves - S71 Series - Female NPT x Female NPT with Blue Lockable Handle

Package Quantity: 4 Units

Specifications for Variant SKU: S71L45 RuB Inc | 4 |
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Female NPT, Some Ends Match
Material(s): Brass
Seal Material(s): PTFE
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stresses at stem
Body:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
  • Blowout-proof nickel plated brass stem
  • Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
  • Triple stem seals in sizes over 2-1/2"
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Flow:
  • Standard port for compact design
Handle:
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • Handle removable with valve in service
Working Pressure & Temperature:
  • Maximum working pressure 600 PSI (CWP)
  • Steam rating 150 PSI (WSP) up thru 2"
  • -40°F/+366°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
  • AISI 316 stainless steel ball and/or stem
  • Glass filled PTFE seals
  • Custom design
Approved by or in Compliance with:
  • Canadian standards Association (United States, Canada)
  • Hygiene and epidemic center in Moscow city (Russia)
  • RoHS Compliant (EU)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G CH
S71D45 1/2" 1/2" 0.453" 0.610" 2.126" 1.043" 0.984"
S71E45 3/4" 3/4" 0.591" 0.669" 2.441" 1.220" 1.220"
S71F45 1" 1" 0.787" 0.827" 2.835" 1.417" 1.496"
S71G45 1-1/4" 1-1/4" 0.984" 0.905" 3.464" 1.732" 1.929"
S71H45 1-1/2" 1-1/2" 1.260" 0.905" 3.779" 1.890" 2.126"
S71I45 2" 2" 1.575" 1.043" 4.409" 2.205" 2.677"
S71L45 2-1/2" 2-1/2" 1.968" 1.260" 5.276" 2.638" 3.346"
S71M45 3" 3" 2.559" 1.378" 6.378" 3.189" 3.898"
S71N45 4" 4" 3.150" 1.634" 7.480" 3.740" 4.921"

*DN shows the nominal flow diameter. Stem configuration of valves over 2-1/2" is slightly different.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
