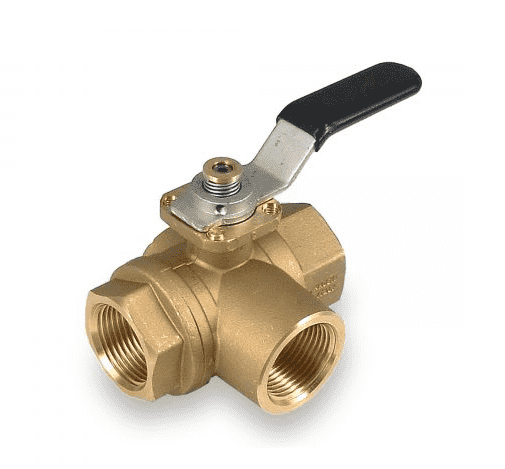

S72D41L by RuB Inc. | 3-Way L-Port Horizontal Fitted Ball Valve | 1/2" Female NPT x 1/2" Female NPT x 1/2" Female NPT | with Black Handle & Blocking System | Brass | Pack of 12

Save $240.32

$841.12

$841.12 - $841.12

$841.12

$600.80

$600.80 - $600.80

$600.80

RuB Inc. - Speciality Ball Valves - S7241 Series - Female NPT - 3 Way L-Port Horizontal Fitted with Black Handle with Blocking System

Package Quantity: 12 Units

Specifications for Variant SKU: S72D41L RuB Inc \| 12 \|
Shape (Orientation):	Tee
Ends Configuration:	1/2in Female NPT, 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s):	Brass
Seal Material(s):	FPM

Quality:
Electronic 100% seal test guaranteed No metal-to-metal moving parts No maintenance ever required Silicone-free lubricant on all seals Chrome plated brass ball for longer life Each valve is seal tested for maximum safety Performs well in any orientation Strong configuration
Body:
Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant Integrated ISO 5211 and DIN 3337 mounting flange for universal connection to actuator Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications 3-way L port design for flow diversion
Stem:
Blowout-proof nickel plated brass stem Two FPM O-rings at the stem for maximum safety
Sealing:
Pure PTFE self-lubricating seats with flexible-lip design 4 seal valve design for mixing of various fluids in the system
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Flow:
100% full port for maximum flow
Handle:
Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load Handle removable with valve in service
Working Pressure & Temperature:
Maximum working pressure: 300 PSI non-shock cold working pressure -4°F/+302°F WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
Custom design
Approved by or in Compliance with:
Hygiene and epidemic center in Moscow city (Russia) RoHS Compliant (EU) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	Size	DN	I	L	G	H	N	ØA	ØC	P	H1	S	T	F	CH
S72D41L	1/2"	1/2" NPT	0.591"	0.610"	2.559"	1.280"	1.820"	1.358"	1.417"	0.205"(M6)	3.937"	1.929"	0.087"	0.394"	0.287"	1.063"
S72E41L	3/4"	3/4" NPT	0.787"	0.709"	3.110"	1.555"	1.555"	1.654"	1.417"	0.205"(M6)	3.937"	2.210"	0.087"	0.394"	0.327"	1.260"
S72F41L	1"	1" NPT	0.984"	0.827"	3.642"	1.831"	1.673"	1.949"	1.417"	0.205"(M6)	3.937"	2.328"	0.087"	0.394"	0.327"	1.614"

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
