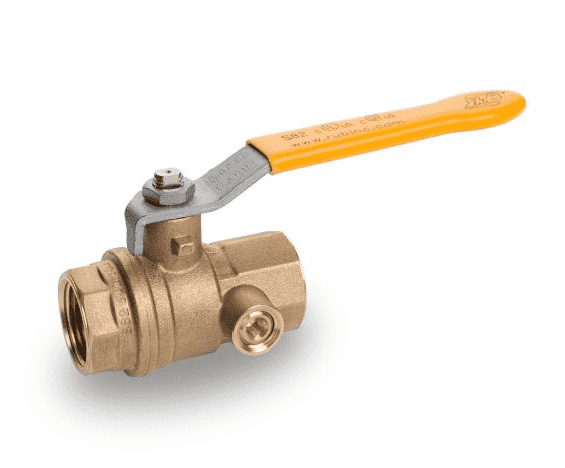

S82I41 by RuB Inc. | Gas Service Side Drain Ball Valve | 2" Female NPT x 2" Female NPT | with Yellow Steel Handle | Brass | Pack of 4

Save $170.30

$596.06

$596.06 - $596.06

$596.06

$425.76

$425.76 - $425.76

$425.76

RuB Inc. - Gas Service Ball Valves - S.82 Series - Female NPT x Female NPT - with Side Drain and Yellow Steel Handle

Package Quantity: 4 Units

Specifications for Variant SKU: S82I41 RuB Inc \| 4 \|
Shape (Orientation):	Straight
Ends Configuration:	2in Female NPT, 2in Female NPT, Some Ends Match
Material(s):	Brass
Seal Material(s):	FPM

Quality:
24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts No maintenance ever required Handle clearly shows ball position Silicone-free lubricant on all seals Handle stops on body to avoid stresses at stem Chrome plated brass ball for longer life
Body:
Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications Side drain allows easy and safe downstream line venting
Stem:
Blowout-proof nickel plated brass stem Two FPM O-rings at the stem for maximum safety
Sealing:
Pure PTFE self-lubricating seats with flexible-lip design
Threads:
NPT taper ANSI B.1.20.1 female by female threads 1/4" NPT side tap
Flow:
Full port to DIN 3357 for maximum flow
Handle:
Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load Handle removable with valve in service
Working Pressure & Temperature:
Maximum working pressure 600 PSI (CWP) -40°F/+350°F WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
AISI 316 stainless steel ball and/or stem Glass filled PTFE seals Custom design Dual side drain port
Approved by or in Compliance with:
Canadian standards Association (United States, Canada) GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) RoHS Complaint (Russia) Underwriters Laboratories (United States & Canada) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	G	A	H	M	CH
S82D41	1/2"	1/2"	0.590"	0.610"	2.559"	1.397"	3.937"	1.679"	0.964"	0.984"
S82E41	3/4"	3/4"	0.787"	0.669"	2.736"	1.476"	4.724"	1.956"	1.063"	1.220"
S82F41	1"	1"	0.984"	0.826"	3.405"	1.811"	4.724"	2.114"	1.200"	1.574"
S82G41	1-1/4"	1-1/4"	1.259"	0.905"	3.878"	2.047"	6.220"	2.858"	1.338"	1.929"
S82H41	1-1/2"	1-1/2"	1.574"	0.905"	4.232"	2.224"	6.220"	3.094"	1.516"	2.125"
S82I41	2"	2"	1.968"	1.043"	4.960"	2.578"	6.220"	3.370"	1.752"	2.696"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
