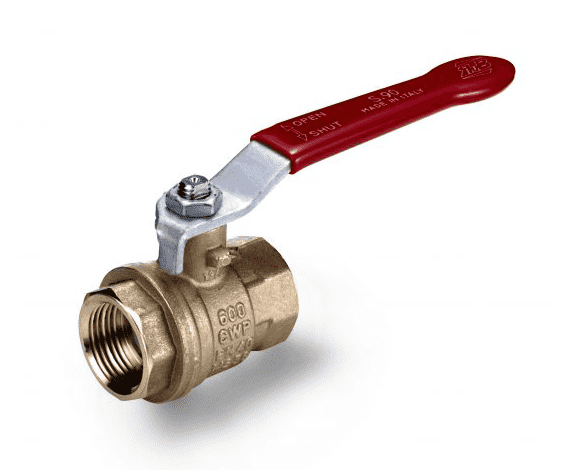

S90E41 by RuB Inc. | Economy Full Port 2-Way Ball Valve | 3/4" Female NPT x 3/4" Female NPT | with Red Steel Handle | Brass | Pack of 12

Save $70.53

$246.85

$246.85 - $246.85

$246.85

$176.32

$176.32 - $176.32

$176.32

RuB Inc. - Full Port 2-Way Ball Valves - S90 Series - Economy Female NPT x Female NPT with Red Steel Handle

Package Quantity: 12 Units

Specifications for Variant SKU: S90E41 RuB Inc \| 12 \|
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s):	Brass
Seal Material(s):	FPM

Quality:
24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts No maintenance ever required Handle clearly shows ball position Chrome plated brass ball for longer life Handle stops on body to avoid stresses at stem
Body:
Hot forged full port sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
Stem:
Blowout-proof nickel plated brass stem Two FPM O-rings at the stem for maximum safety
Sealing:
PTFE self-lubricating seats with flexible-lip design
Threads:
NPT short taper female by female threads
Handle:
Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load Handle removable with valve in service
Working Pressure & Temperature:
600 PSI non-shock cold working pressure -40°F/+350°F WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in Compliance with:
GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) RoHS Compliant (EU) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	G	A	H	CH
S90B41	1/4"	1/4"	0.314"	0.354"	1.535"	0.767"	3.228"	1.480"	0.787"
S90C41	3/8"	3/8"	0.393"	0.354"	1.535"	0.767"	3.228"	1.480"	0.787"
S90D41	1/2"	1/2"	0.590"	0.433"	1.968"	0.984"	3.937"	1.679"	0.984"
S90E41	3/4"	3/4"	0.787"	0.472"	2.125"	1.062"	4.724"	1.956"	1.220"
S90F41	1"	1"	0.984"	0.551"	2.637"	1.318"	4.724"	2.114"	1.496"
S90G41	1-1/4"	1-1/4"	1.259"	0.590"	3.031"	1.515"	6.220"	2.858"	1.889"
S90H41	1-1/2"	1-1/2"	1.574"	0.669"	3.543"	1.771"	6.220"	3.094"	2.125"
S90I41	2"	2"	1.968"	0.748"	4.173"	2.086"	6.220"	3.370"	2.598"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
