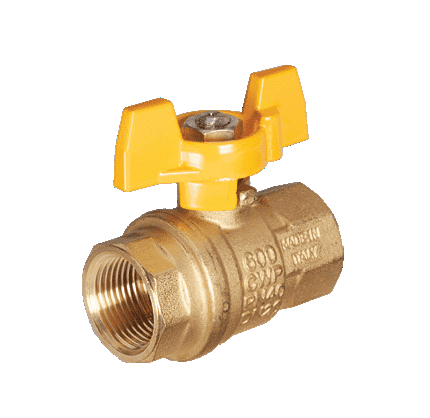

S92DF8 by RuB Inc. | Full Port 2-Way Ball Valve | 1/2" Female NPT x 1/2" Female NPT | with Stainless Steel Ball and Stem | with Yellow Aluminum T-Handle | Brass | Pack of 10

Save $25.28

$227.55

$227.55 - $227.55

$227.55

$202.27

$202.27 - $202.27

$202.27

RuB Inc. - Full Port 2-Way Ball Valves - S92 Series - Female NPT x Female NPT with Stainless Steel Ball & Stem, with Yellow Aluminum T-Handle

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: S92DF8 RuB Inc \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s):	Brass
Seal Material(s):	PTFE

Quality:
24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts Handle clearly shows ball position Silicone-free lubricant on all seals Chrome plated brass ball for longer life Handle stops on body to avoid stresses at stem
Body:
Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
Blowout-proof nickel plated brass stem Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance Triple stem seals in sizes over 2"
Sealing:
Glass filled pure PTFE self-lubricating seats with flexible-lip design
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Flow:
Full port to DIN 3357 for maximum flow
Handle:
Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load Handle removable with valve in service
Working Pressure & Temperature:
Maximum working pressure 600 PSI (CWP) Steam rating 150 PSI (WSP) -40°F/+350°F WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
AISI 316 stainless steel ball Custom design Pure PTFE seals
Approved by or in Compliance with:
Canadian standards Association (United States, Canada) Factory Mutual (United States) GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) RoHS Compliant (EU) Underwriters Laboratories (United States & Canada) Meeting WW-V-35C Federal U.S. Specification NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	G	CH
S92BF8	1/4"	1/4"	0.314"	0.472"	1.771"	0.885"	0.787"
S92CF8	3/8"	3/8"	0.393"	0.472"	1.771"	0.885"	0.787"
S92DF8	1/2"	1/2"	0.590"	0.610"	2.332"	1.161"	0.984"
S92EF8	3/4"	3/4"	0.787"	0.669"	2.519"	1.259"	1.220"
S92FF8	1"	1"	0.984"	0.826"	3.188"	1.594"	1.574"
S92GF8**	1-1/4"	1-1/4"	1.259"	0.905"	3.661"	1.830"	1.929"
S92HF8**	1-1/2"	1-1/2"	1.574"	0.905"	4.015"	2.007"	2.125"
S92IF8**	2"	2"	1.968"	1.043"	4.763"	2.381"	2.696"

**Steel T-Handle

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of valves over 2" is slightly different.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
