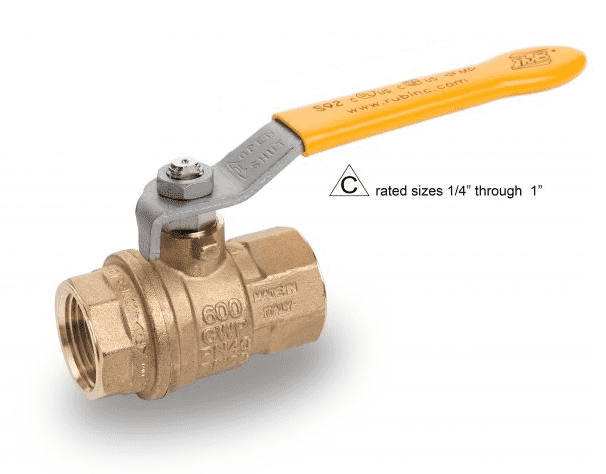

S92G41 by RuB Inc. | Full Port 2-Way Ball Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | with Yellow Steel Handle | Brass | Pack of 8

S92G41 by RuB Inc. | Full Port 2-Way Ball Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | with Yellow Steel Handle | Brass | Pack of 8

Save $131.12 Save $131.12
$458.91
$458.91 - $458.91
$458.91
$327.79
$327.79 - $327.79
$327.79

RuB Inc. - Full Port 2-Way Ball Valves - S92 Series - Female NPT x Female NPT with Yellow Steel Handle

Package Quantity: 8 Units

Specifications for Variant SKU: S92G41 RuB Inc | 8 |
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
Material(s): Brass
Seal Material(s): PTFE
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stresses at stem
Body:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
  • Blowout-proof nickel plated brass stem
  • Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
  • Triple stem seals in sizes over 2"
Sealing:
  • Glass filled pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Flow:
  • Full port to DIN 3357 for maximum flow
Handle:
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Handle removable with valve in service
Working Pressure & Temperature:
  • 600 PSI up to 2", 450 PSI over 2" non-shock cold working pressure
  • Steam rating 150 PSI (WSP)
  • -40°F/+366°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
  • AISI 316 stainless steel ball
  • Custom design
  • Pure PTFE seals
Approved by or in Compliance with:
  • Canadian standards Association (United States, Canada)
  • Factory Mutual (United States)
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States & Canada)
  • Meeting WW-V-35C Federal U.S. Specification
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G A H CH
S92B41 1/4" 1/4" 0.314" 0.472" 1.771" 0.885" 3.228" 1.563" 0.787"
S92C41 3/8" 3/8" 0.393" 0.472" 1.771" 0.885" 3.228" 1.563" 0.787"
S92D41 1/2" 1/2" 0.590" 0.610" 2.322" 1.161" 3.937" 1.695" 0.984"
S92E41 3/4" 3/4" 0.787" 0.669" 2.519" 1.259" 4.724" 1.988" 1.220"
S92F41 1" 1" 0.984" 0.826" 3.188" 1.594" 4.724" 2.153" 1.574"
S92G41 1-1/4" 1-1/4" 1.259" 0.905" 3.661" 1.830" 6.220" 2.988" 1.929"
S92H41 1-1/2" 1-1/2" 1.574" 0.905" 4.015" 2.007" 6.220" 3.236" 2.125"
S92I41 2" 2" 1.968" 1.043" 4.763" 2.381" 6.220" 3.500" 2.696"
S92L41 2-1/2" 2-1/2" 2.559" 1.260" 6.141" 3.070" 10.039" 5.196" 3.346"
S92M41 3" 3" 3.149" 1.377" 6.968" 3.484" 10.039" 5.511" 3.897"
S92N41 4" 4" 3.937" 1.633" 8.504" 4.252" 10.039" 6.062" 4.921"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of valves over 2" is slightly different.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
