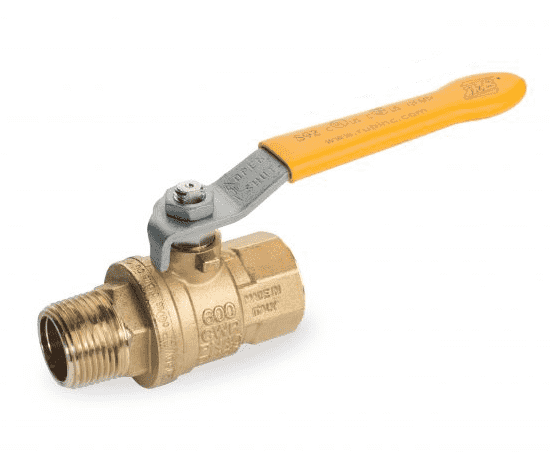

S92G42 by RuB Inc. | Full Port 2-Way Ball Valve | 1-1/4" Male NPT x 1-1/4" Female NPT | with Yellow Steel Handle | Brass | Pack of 8

Save $43.21

$388.92

$388.92 - $388.92

$388.92

$345.71

$345.71 - $345.71

$345.71

RuB Inc. - Full Port 2-Way Ball Valves - S92 Series - Male NPT x Female NPT with Yellow Steel Handle

Package Quantity: 8 Units

Quantity

Specifications for Variant SKU: S92G42 RuB Inc \| 8 \|
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Male NPT, 1-1/4in Female NPT
Material(s):	Brass
Seal Material(s):	PTFE

Quality:
24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts Handle clearly shows ball position Silicone-free lubricant on all seals Chrome plated brass ball for longer life Handle stops on body to avoid stresses at stem
Body:
Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
Blowout-proof nickel plated brass stem Pure PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance Triple stem seals in sizes over 2"
Sealing:
Glass filled pure PTFE self-lubricating seats with flexible-lip design
Threads:
NPT taper ANSI B.1.20.1 male by female threads
Flow:
Full port to DIN 3357 for maximum flow
Handle:
Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load Handle removable with valve in service
Working Pressure & Temperature:
Maximum working pressure 600 PSI (CWP) up thru and including 2"; 450 PSI (CWP) over 2" Steam rating 150 PSI (WSP) -40°F/+350°F WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
AISI 316 stainless steel ball and/or stem Custom design Pure PTFE seals
Approved by or in Compliance with:
Canadian standards Association (United States, Canada) Factory Mutual (United States) GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) RoHS Compliant (EU) Underwriters Laboratories (United States & Canada) Meeting WW-V-35C Federal U.S. Specification NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	DN1	I	I1	L	G	A	H	CH
S92B42	1/4"	1/4"	0.314"	0.314"	0.472"	0.531"	2.224"	0.885"	3.228"	1.563"	0.787"
S92C42	3/8"	3/8"	0.393"	0.393"	0.472"	0.531"	2.224"	0.885"	3.228"	1.563"	0.787"
S92D42	1/2"	1/2"	0.590"	0.590"	0.610"	0.650"	2.756"	1.161"	3.937"	1.695"	0.984"
S92E42	3/4"	3/4"	0.787"	0.787"	0.669"	0.709"	2.992"	1.259"	4.724"	1.988"	1.220"
S92F42	1"	1"	0.984"	0.984"	0.826"	0.866"	3.642"	1.594"	4.724"	2.153"	1.574"
S92G42	1-1/4"	1-1/4"	1.259"	1.259"	0.905"	0.945"	4.173"	1.830"	6.220"	2.988"	1.929"
S92H42	1-1/2"	1-1/2"	1.574"	1.574"	0.905"	0.845"	4.449"	2.007"	6.220"	3.236"	2.125"
S92I42	2"	2"	1.968"	1.968"	1.043"	1.083"	5.236"	2.381"	6.220"	3.500"	2.696"
S92L42	2-1/2"	2-1/2"	2.559"	2.205"	1.260"	1.457"	7.106"	3.070"	10.039"	5.196"	3.346"
S92M42	3"	3"	3.149"	2.756"	1.377"	1.555"	8.051"	3.484"	10.039"	5.511"	3.897"
S92N42	4"	4"	3.937"	3.701"	1.633"	1.732"	9.370"	4.252"	10.039"	6.062"	4.921"

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of valves over 2" is slightly different.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
