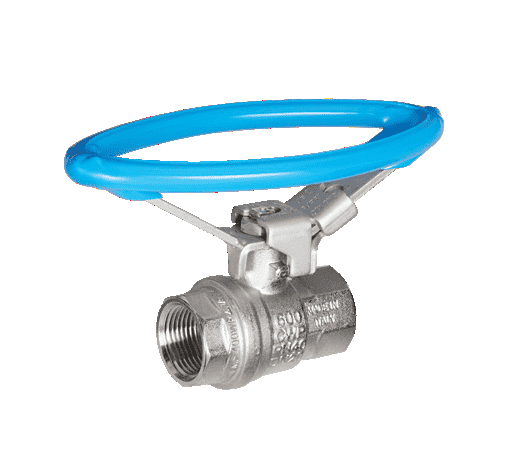

S95E43N by RuB Inc. | Full Port 2-Way Ball Valve | 3/4" Female NPT x 3/4" Female NPT | with Oval Lockable Handle | Nickel Plated Brass | Pack of 12

Save $146.05

$511.17

$511.17 - $511.17

$511.17

$365.12

$365.12 - $365.12

$365.12

RuB Inc. - Full Port 2-Way Ball Valves - S95 Series - Female NPT x Female NPT Nickel Plated Body with Oval Lockable Handle

Package Quantity: 12 Units

Specifications for Variant SKU: S95E43N RuB Inc \| 12 \|
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	FPM

Quality:
24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts No maintenance ever required Handle clearly shows ball position Silicone-free lubricant on all seals Chrome plated brass ball for longer life Handle stops on body to avoid stresses at stem
Body:
Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
Blowout-proof nickel plated brass stem Two FPM O-rings at the stem for maximum safety
Sealing:
Pure PTFE self-lubricating seats with flexible-lip design
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Flow:
Full port to DIN 3357 for maximum flow
Handle:
Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load Handle removable with valve in service
Working Pressure & Temperature:
600 PSI up to 2", 450 PSI over 2" non-shock cold working pressure -40°F/+350°F WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
AISI 316 stainless steel ball Glass filled PTFE seals Custom design Special configuration for industrial oxygen application
Approved by or in Compliance with:
Canadian standards Association (United States, Canada) Factory Mutual (United States) GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) TSSA (Canada) RoHS Compliant (EU) Underwriters Laboratories (United States & Canada) Meeting WW-V-35C Federal U.S. Specification NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	G	CH
S95B43N	1/4"	1/4"	0.315"	0.472"	1.771"	0.885"	0.787"
S95C43N	3/8"	3/8"	0.394"	0.472"	1.771"	0.885"	0.787"
S95D43N	1/2"	1/2"	0.590"	0.610"	2.332"	1.161"	0.984"
S95E43N	3/4"	3/4"	0.787"	0.669"	2.519"	1.259"	1.220"
S95F43N	1"	1"	0.984"	0.826"	3.188"	1.594"	1.574"
S95G43N	1-1/4"	1-1/4"	1.260"	0.905"	3.661"	1.830"	1.929"
S95H43N	1-1/2"	1-1/2"	1.574"	0.905"	4.015"	2.007"	2.125"
S95I43N	2"	2"	1.968"	1.043"	4.763"	2.381"	2.696"
S95L43N**	2-1/2"	2-1/2"	2.559"	1.260"	6.141"	3.070"	3.346"
S95M43N**	3"	3"	3.150"	1.377"	6.968"	3.484"	3.897"
S95N43N**	4"	4"	3.937"	1.633"	8.504"	4.252"	4.921"

**Sizes 2-1/2 - 4" with round handle (not oval)

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of valves over 2" is slightly different.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
