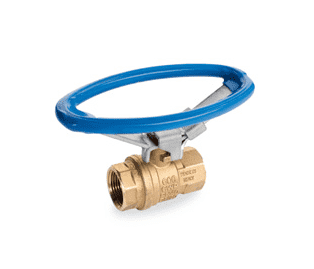

S95G43 by RuB Inc. | Full Port 2-Way Ball Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | with Oval Lockable Handle | Brass | Pack of 8

S95G43 by RuB Inc. | Full Port 2-Way Ball Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | with Oval Lockable Handle | Brass | Pack of 8

Save $173.87 Save $173.87
$608.54
$608.54 - $608.54
$608.54
$434.67
$434.67 - $434.67
$434.67

RuB Inc. - Full Port 2-Way Ball Valves - S95 Series - Female NPT x Female NPT with Oval Lockable Handle

Package Quantity: 8 Units

Specifications for Variant SKU: S95G43 RuB Inc | 8 |
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
Material(s): Brass
Seal Material(s): FPM
Quality:
  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stresses at stem
Body:
  • Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
  • Blowout-proof nickel plated brass stem
  • Two FPM O-rings at the stem for maximum safety
Sealing:
  • Pure PTFE self-lubricating seats with flexible-lip design
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Flow:
  • Full port to DIN 3357 for maximum flow
Handle:
  • PVC dip coating. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Handle removable with valve in service
Working Pressure & Temperature:
  • 600 PSI (CWP) up thru and including 2", 450 PSI (CWP) over 2"
  • -40°F/+350°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Upon Request:
  • AISI 316 stainless steel ball
  • Glass filled PTFE seals
  • Custom design
  • Special configuration for industrial oxygen application
Approved by or in Compliance with:
  • Canadian standards Association (United States, Canada)
  • Factory Mutual (United States)
  • GOST-R (Russia)
  • Hygiene and epidemic center in Moscow city (Russia)
  • TSSA (Canada)
  • RoHS Compliant (EU)
  • Underwriters Laboratories (United States & Canada)
  • Meeting WW-V-35C Federal U.S. Specification
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN I L G CH
S95B43 1/4" 1/4" 0.314" 0.472" 1.771" 0.885" 0.787"
S95C43 3/8" 3/8" 0.393" 0.472" 1.771" 0.885" 0.787"
S95D43 1/2" 1/2" 0.590" 0.610" 2.332" 1.161" 0.984"
S95E43 3/4" 3/4" 0.787" 0.669" 2.519" 1.259" 1.220"
S95F43 1" 1" 0.984" 0.826" 3.188" 1.594" 1.574"
S95G43 1-1/4" 1-1/4" 1.259" 0.905" 3.661" 1.830" 1.929"
S95H43 1-1/2" 1-1/2" 1.574" 0.905" 4.015" 2.007" 2.125"
S95I43 2" 2" 1.968" 1.043" 4.763" 2.381" 2.696"
S95L43** 2-1/2" 2-1/2" 2.559" 1.260" 6.141" 3.070" 3.346"
S95M43** 3" 3" 3.149" 1.377" 6.968" 3.484" 3.897"
S95N43** 4" 4" 3.937" 1.633" 8.504" 4.252" 4.921"

**Sizes 2-1/2 - 4" with round handle (not oval)

*DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of valves over 2" is slightly different.

RuB Inc

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
