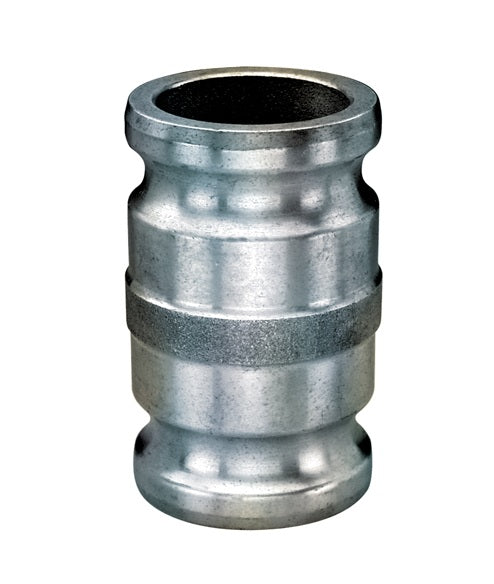

SA-A2030 by Kuriyama | SA-A Series | Part AA | Cam & Groove Spool Adapter | 2" Adapter x 3" Adapter | Aluminum

Save $10.03

$31.88

$31.88 - $31.88

$31.88

$21.85

$21.85 - $21.85

$21.85

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Part A - Reducing Coupler x Adapter - Aluminum

Specifications for Variant SKU: SA-A2030 Kuriyama
Shape (Orientation):	Straight
Cam Type:	Type AA (Spool Adapter)
Ends Configuration:	2in Male Cam & Groove, 3in Male Cam & Groove
Material(s):	Aluminum

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made to withstand rigorous. applications found in industrial markets.
Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability.

Part Number	Male Coupler Size (in)	Male Coupler Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
SA-A150	1-1/2"	1-1/2"	250 PSI	B108-92 356	0.43 lbs
SA-A1520	1-1/2"	2"	250 PSI	B108-92 356	0.55 lbs
SA-A200	2"	2"	250 PSI	B108-92 356	0.68 lbs
SA-A2030	2"	3"	150 PSI	B108-92 356	0.97 lbs
SA-A300	3"	3"	150 PSI	B108-92 356	1.10 lbs
SA-A3040	3"	4"	150 PSI	B108-92 356	1.78 lbs
SA-A400	4"	4"	150 PSI	B108-92 356	1.91 lbs
SA-A4060	4"	6"	75 PSI	B26 Grade 713	3.64 lbs
SA-A600	6"	6"	75 PSI	B26 Grade 713	3.48 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
