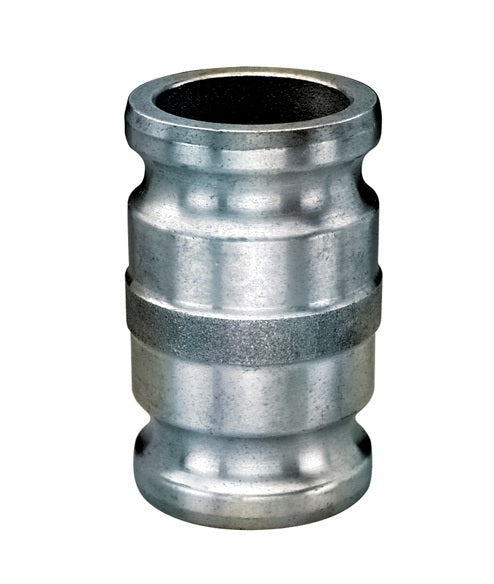

SA-A400 by Kuriyama | SA-A Series | Part AA | Cam & Groove Spool Adapter | 4" Adapter x 4" Adapter | Aluminum

SA-A400 by Kuriyama | SA-A Series | Part AA | Cam & Groove Spool Adapter | 4" Adapter x 4" Adapter | Aluminum

Save $14.16 Save $14.16
$59.66
$59.66 - $59.66
$59.66
$45.50
$45.50 - $45.50
$45.50

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Part A - Reducing Coupler x Adapter - Aluminum

Specifications for Variant SKU: SA-A400 Kuriyama
Shape (Orientation): Straight
Cam Type: Type AA (Spool Adapter)
Ends Configuration: 4in Male Cam & Groove, 4in Male Cam & Groove, Some Ends Match
Material(s): Aluminum

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous. applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
Part Number Male Coupler Size
(in)		 Male Coupler Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
SA-A150 1-1/2" 1-1/2" 250 PSI B108-92 356 0.43 lbs
SA-A1520 1-1/2" 2" 250 PSI B108-92 356 0.55 lbs
SA-A200 2" 2" 250 PSI B108-92 356 0.68 lbs
SA-A2030 2" 3" 150 PSI B108-92 356 0.97 lbs
SA-A300 3" 3" 150 PSI B108-92 356 1.10 lbs
SA-A3040 3" 4" 150 PSI B108-92 356 1.78 lbs
SA-A400 4" 4" 150 PSI B108-92 356 1.91 lbs
SA-A4060 4" 6" 75 PSI B26 Grade 713 3.64 lbs
SA-A600 6" 6" 75 PSI B26 Grade 713 3.48 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
