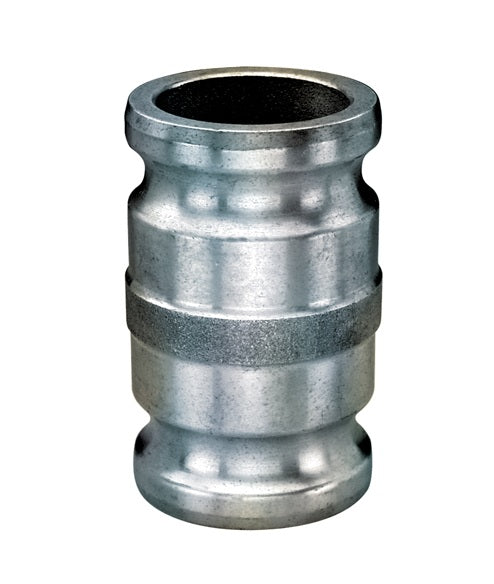

SA-A4060 by Kuriyama | SA-A Series | Part AA | Cam & Groove Spool Adapter | 4" Adapter x 6" Adapter | Aluminum

SA-A4060 by Kuriyama | SA-A Series | Part AA | Cam & Groove Spool Adapter | 4" Adapter x 6" Adapter | Aluminum

Save $16.79 Save $16.79
$68.04
$68.04 - $68.04
$68.04
$51.25
$51.25 - $51.25
$51.25

Kuriyama of America Inc.
Cam & Groove (Camlock) Spool Adapter | SA-A Series | Part AA | Adapter x Adapter | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SA-A4060 Kuriyama
Series: SA-A Series
Shape (Orientation): Straight
Cam Type: Type AA (Spool Adapter)
Ends Configuration: 4in Male Cam & Groove, 6in Male Cam & Groove
Material(s): Aluminum

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous. applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
Part Number Male Coupler Size
(in)		 Male Coupler Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
SA-A150 1-1/2" 1-1/2" 250 PSI B108-92 356 0.43 lbs
SA-A1520 1-1/2" 2" 250 PSI B108-92 356 0.55 lbs
SA-A200 2" 2" 250 PSI B108-92 356 0.68 lbs
SA-A2030 2" 3" 150 PSI B108-92 356 0.97 lbs
SA-A300 3" 3" 150 PSI B108-92 356 1.10 lbs
SA-A3040 3" 4" 150 PSI B108-92 356 1.78 lbs
SA-A400 4" 4" 150 PSI B108-92 356 1.91 lbs
SA-A4060 4" 6" 75 PSI B26 Grade 713 3.64 lbs
SA-A600 6" 6" 75 PSI B26 Grade 713 3.48 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
