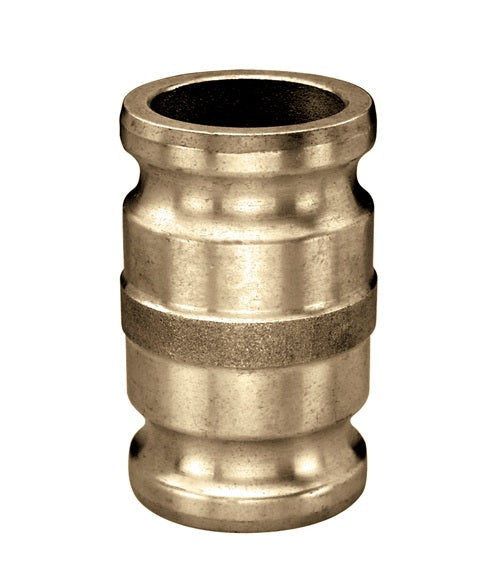

SA-B400 by Kuriyama | SA-B Series | Part AA | Cam & Groove Spool Adapter | 4" Adapter x 4" Adapter | Brass

Save $30.06

$181.80

$181.80 - $181.80

$181.80

$151.74

$151.74 - $151.74

$151.74

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Part B - Spool Adapter - Brass

Specifications for Variant SKU: SA-B400 Kuriyama
Series:	SA-B Series
Shape (Orientation):	Straight
Cam Type:	Type AA (Spool Adapter)
Ends Configuration:	4in Male Cam & Groove, 4in Male Cam & Groove, Some Ends Match
Material(s):	Brass

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Highly resistant to damage and corrosion.
Brass performs especially well against saltwater corrosion, so it is commonly found in marine applications.

What are the Features?

High quality design made to withstand rigorous. applications found in industrial markets.
Brass alloy is specially designed for high tensile strength, impact resistance, and rigidity.

What are the Materials?

ASTM brass alloy, specially designed for high tensile strength and impact resistance.
Complies with Mil-Spec A-A-59326 for interchangeability.

Part Number	Male Coupler Size (in)	Male Coupler Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
SA-B150	1-1/2"	1-1/2"	250 PSI	B584 Grade C85700	1.35 lbs
SA-B200	2"	2"	250 PSI	B584 Grade C85700	2.11 lbs
SA-B250	2-1/2"	2-1/2"	150 PSI	B584 Grade C85700	3.55 lbs
SA-B300	3"	3"	150 PSI	B584 Grade C85700	3.69 lbs
SA-B400	4"	4"	150 PSI	B584 Grade C85700	5.97 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
