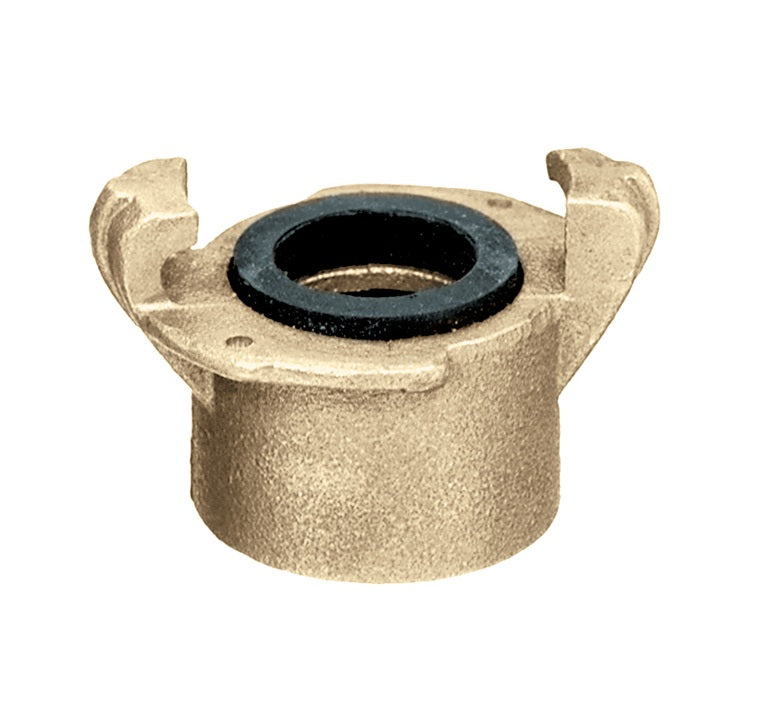

SB-BR3 by Kuriyama | SB-AL Series | Sandblast Threaded Hose Coupling | Two Lug | Full Flow | 1-1/4" Hose ID | 2-3/8" Hose OD | 1-1/2" Female NPT | Brass

SB-BR3 by Kuriyama | SB-BR Series | Sandblast Threaded Hose Coupling | Two Lug | Full Flow | 1-1/4" Hose ID | 2-3/8" Hose OD | 1-1/2" Female NPT | Brass

Save $17.67

$96.51

$96.51 - $96.51

$96.51

$78.84

$78.84 - $78.84

$78.84

Kuriyama of America Inc.
SB-AL Series | Sandblast Threaded Hose Coupling | Female NPT | Brass

Specifications for Variant SKU: SB-BR3 Kuriyama
Series:	SB-BR Series
Shape (Orientation):	Straight
Ends Configuration:	2-Lug Chicago, 1-1/2in Female NPT
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Applicable Specs & Approvals:	ASTM B584

What are the Materials?

Brass – ASTM B584, Grade C85700.

Part Number	Hose ID (in)	Hose OD (in)	PSI Rating at 70°F	Gasket	Flow Size	NPT Thread Size (in)	Weight Each (lbs)
SB-BR1	3/4"	1-1/2"	175 PSI	SBG	Standard	1-1/4"	1.02 lbs
SB-BR2	1"	1-7/8"	175 PSI	SBG	Standard	1-1/2"	0.84 lbs
SB-BR3	1-1/4"	2-3/8"	175 PSI	SRG-2	Full	1-1/2"	3.05 lbs
SB-BR6	2"	2-7/8"	175 PSI	SRG-2	Full	2"	4.20 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
