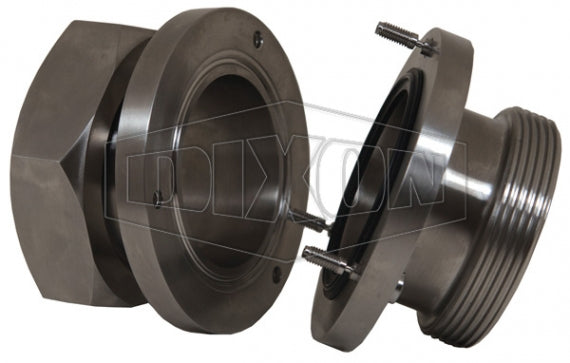

SBC-E200TP13 Dixon Valve Sanitary Breakaway Coupling - 2" Bevel Seat Ends - EPDM Gasket - 316 Stainless Steel

SBC-E200TP13 Dixon Valve Sanitary Breakaway Coupling - 2" Bevel Seat Ends - EPDM Gasket - 316 Stainless Steel

Save $249.13 Save $249.13
$622.82
$622.82 - $622.82
$622.82
$373.69
$373.69 - $373.69
$373.69

Dixon Sanitary Fittings

Breakaway Coupling

Minimizes spillage and damage associated with pull away and drive away incidents.
Specifications for Variant SKU: SBC-E200TP13 Dixon
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Seal Material(s): EPDM
Features:
  • Designed to be installed between a fixed point and a hose.
  • 13kN break load bolts standard.
  • Coupling breaks away with an excessive load.
Construction:
  • 316 stainless steel polished to standard <32Ra, 3A finish
  • Clamp gasket: EPDM standard
Specifications:
  • Working Pressure: 350 PSI @ 70°F (21°C)
Part Number Size Connection Type Gasket Material
SBC-E200CC13 2" Clamp Ends EPDM 316 Stainless Steel
SBC-E300CC13 3" Clamp Ends EPDM 316 Stainless Steel
SBC-E200TP13 2" Bevel Seat Ends EPDM 316 Stainless Steel
SBC-E300TP13 3" Bevel Seat Ends EPDM 316 Stainless Steel
