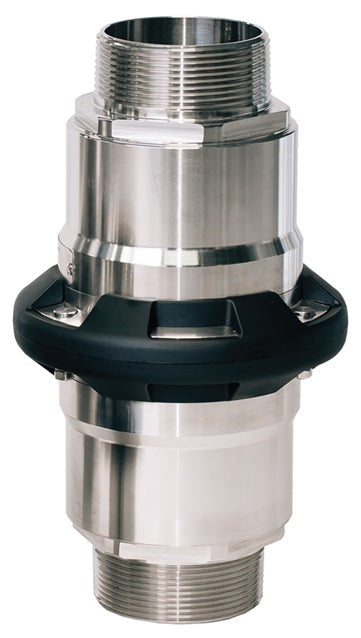

SBC500SSMNPT by Dixon Valve | MannTek Safety Break-Away Coupling | Industrial Version | 5" Size | 125 DN | Male NPT x Male NPT | 316 Stainless Steel

SBC500SSMNPT by Dixon Valve | MannTek Safety Break-Away Coupling | Industrial Version | 5" Size | 125 DN | Male NPT x Male NPT | 316 Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Valve
MannTek Safety Break-Away Coupling | Industrial Version | Male NPT x Male NPT

Coupling is designed to minimize spillage and damage associated with drive away and pull away incidents.

Typical applications: Loading rack, bulk loading / unloading, road tankers, and rail tankers.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: SBC500SSMNPT Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 5in Male NPT, 5in Male NPT, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): Viton/FKM
Features:

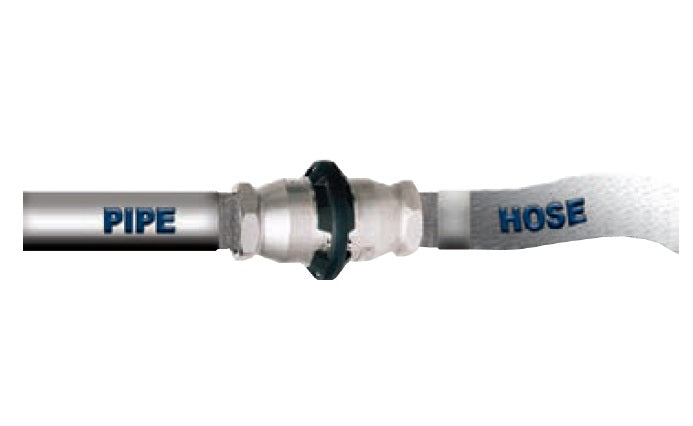

  • Designed to be installed between a fixed point (pipe, pump, manifold) and a hose.
  • Coupling automatically senses an excessive load, closes the valves and disconnects.
  • High flow rate / low pressure drop.
Construction:
  • FKM (FPM) seal standard.
Specifications:
  • Working pressure:
    • Stainless Steel: 360 PSI at ambient temperature 70°F (21°C)
    • Aluminum: 230 PSI at ambient temperature 70°F (21°C)
How It Works:
  • The safety breakaway valve consists of two halves, each with a valve that has an O-ring seal. When the safety breakaway couplings separate, it allows the valves to close. The two valves close rapidly, minimizing exposure to personnel and the environment.
  • Safety breakaway couplings have three external break bolts. In the case of axial tension all of the bolts take up the force corresponding to the break force on the hose with a safety margin. Non-axial forces concentrate the tension forces more strongly on one bolt, so that the safety breakaway coupling reacts in a natural way to the reduction of the hose break forces.
316 Stainless Steel
Part Number		 Aluminum
Part Number		 Size DN Size Length Width Flow
SBC200SSMNPT SBC200ALMNPT 2" 50 DN 7" (178 mm) 4.5" (114 mm) 200 GPM (757 LPM)
SBC300SSMNPT SBC300ALMNPT 3" 80 DN 11.3" (287 mm) 6.8" (173 mm) 650 GPM (2460 LPM)
SBC400SSMNPT SBC400ALMNPT 4" 100 DN 12.9" (328 mm) 8.3" (211 mm) 800 GPM (3028 LPM)
SBC500SSMNPT SBC500ALMNPT 5" 125 DN 13.8" (351 mm) 10.6" (269 mm) 1100 GPM (4154 LPM)
SBC600SSMNPT SBC600ALMNPT 6" 150 DN 16" (406 mm) 12" (305 mm) 1500 GPM (5678 LPM)
