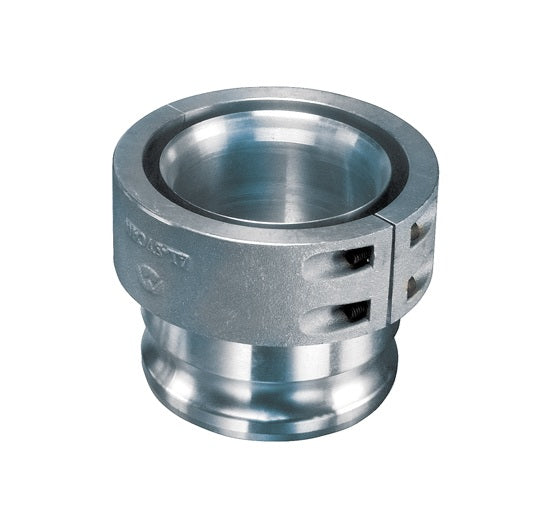

SCAL-E400 by Kuriyama | SCAL-E Series | Part E | Cam & Groove Swivel Adapter | 4" Adapter x 4" Hose Barb | Aluminum

Save $17.43

$92.50

$92.50 - $92.50

$92.50

$75.07

$75.07 - $75.07

$75.07

Kuriyama of America Inc.
Cam & Groove (Camlock) Swivel Adapter | SCAL-E Series | Part E | Adapter x Hose Barb | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: SCAL-E400 Kuriyama
Series:	SCAL-E Series
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	4in Male Cam & Groove, 4in Hose Barb
Material(s):	Aluminum
Special Properties:	Swivel

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design to withstand rigorous applications found in industrial markets.
Nitrile gasket helps prevent product contamination.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability.
304 stainless steel handle pins, pull rings, and safety clips.

Part Number	Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
SCAL-E400	4"	72 PSI	B26 Grade 713	3.20 lbs
