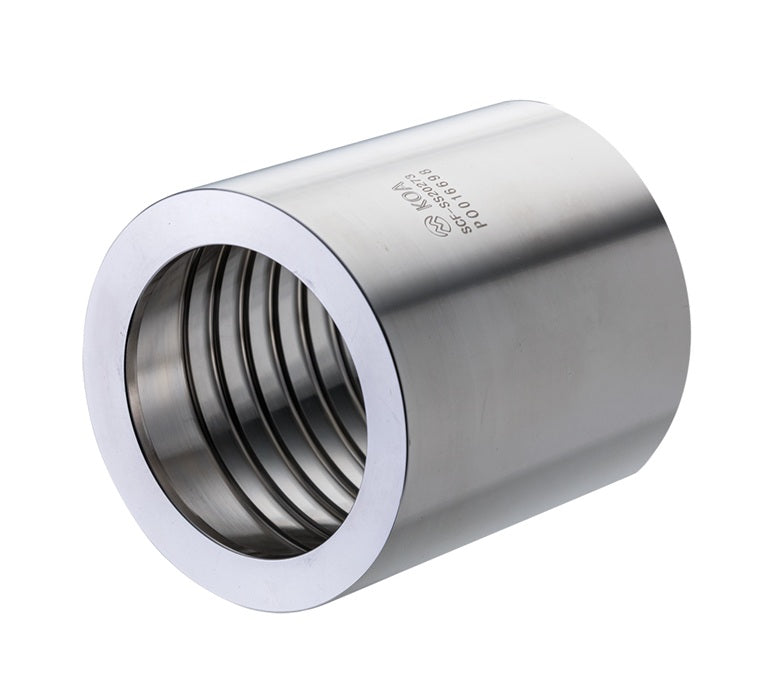

SCF-SS20264 by Kuriyama | SCF-SS Series | Sanitary Crimp Ferrule | 2" Hose ID | 2.64" Ferrule ID | 304 Stainless Steel

SCF-SS20264 by Kuriyama | SCF-SS Series | Sanitary Crimp Ferrule | 2" Hose ID | 2.64" Ferrule ID | 304 Stainless Steel

Save $12.50 Save $12.50
$58.06
$58.06 - $58.06
$58.06
$45.56
$45.56 - $45.56
$45.56

Kuriyama of America Inc.
Sanitary Crimp Ferrule
Specifications for Variant SKU: SCF-SS20264 Kuriyama
Series: SCF-SS Series
Material(s): 304 Stainless Steel

What are the Features?

  • Smooth 64RA surface finish.
  • Designed for use with TCS-SS, FBS-SS, MBS-SS, FILS-SS, MILS-SS and TES-SS series fittings.
Part Number Hose ID Ferrule ID Wall Thickness Length Weight
Each
(in) (in) (mm) (in) (mm) (lbs)
SCF-SS10138 1" 1.38" 35.0mm 0.108" 2.7mm 2.28" 57.9mm 0.28 lbs
SCF-SS10146 1" 1.46" 37.1mm 0.108" 2.7mm 2.28" 57.9mm 0.29 lbs
SCF-SS10153 1" 1.53" 38.9mm 0.108" 2.7mm 2.28" 57.9mm 0.31 lbs
SCF-SS10157 1" 1.57" 39.9mm 0.108" 2.7mm 2.28" 57.9mm 0.33 lbs
SCF-SS10161 1" 1.61" 40.9mm 0.108" 2.7mm 2.28" 57.9mm 0.35 lbs
SCF-SS10165 1" 1.65" 41.9mm 0.108" 2.7mm 2.28" 57.9mm 0.36 lbs
SCF-SS10173 1" 1.73" 43.9mm 0.108" 2.7mm 2.28" 57.9mm 0.37 lbs

SCF-SS15201 1-1/2" 2.01" 51.1mm 0.118" 3.0mm 2.36" 60.0mm 0.46 lbs
SCF-SS15206 1-1/2" 2.06" 52.3mm 0.118" 3.0mm 2.36" 60.0mm 0.49 lbs
SCF-SS15210 1-1/2" 2.10" 53.3mm 0.118" 3.0mm 2.36" 60.0mm 0.49 lbs
SCF-SS15215 1-1/2" 2.15" 54.6mm 0.118" 3.0mm 2.36" 60.0mm 0.51 lbs
SCF-SS15220 1-1/2" 2.20" 55.9mm 0.118" 3.0mm 2.36" 60.0mm 0.53 lbs
SCF-SS15228 1-1/2" 2.28" 57.9mm 0.118" 3.0mm 2.36" 60.0mm 0.55 lbs
SCF-SS15236 1-1/2" 2.36" 59.9mm 0.118" 3.0mm 2.36" 60.0mm 0.60 lbs

SCF-SS20248 2" 2.48" 63.0mm 0.128" 3.3mm 2.80" 71.1mm 0.68 lbs
SCF-SS20256 2" 2.56" 65.0mm 0.128" 3.3mm 2.80" 71.1mm 0.68 lbs
SCF-SS20264 2" 2.64" 67.1mm 0.128" 3.3mm 2.80" 71.1mm 0.73 lbs
SCF-SS20268 2" 2.68" 68.1mm 0.128" 3.3mm 2.80" 71.1mm 0.75 lbs
SCF-SS20273 2" 2.73" 69.3mm 0.128" 3.3mm 2.80" 71.1mm 0.77 lbs
SCF-SS20279 2" 2.79" 70.1mm 0.128" 3.3mm 2.80" 71.1mm 0.80 lbs
SCF-SS20287 2" 2.87" 72.9mm 0.128" 3.3mm 2.80" 71.1mm 0.84 lbs
SCF-SS20295 2" 2.95" 74.9mm 0.128" 3.3mm 2.80" 71.1mm 0.88 lbs

SCF-SS25300 2-1/2" 3.00" 76.2mm 0.138" 3.5mm 3.25" 82.6mm 0.95 lbs
SCF-SS25307 2-1/2" 3.07" 78.0mm 0.138" 3.5mm 3.25" 82.6mm 0.98 lbs
SCF-SS25315 2-1/2" 3.15" 80.0mm 0.138" 3.5mm 3.25" 82.6mm 1.02 lbs
SCF-SS25323 2-1/2" 3.23" 82.0mm 0.138" 3.5mm 3.25" 82.6mm 1.06 lbs
SCF-SS25331 2-1/2" 3.31" 84.1mm 0.138" 3.5mm 3.25" 82.6mm 1.10 lbs
SCF-SS25339 2-1/2" 3.39" 86.1mm 0.138" 3.5mm 3.25" 82.6mm 1.14 lbs
SCF-SS25346 2-1/2" 3.46" 87.9mm 0.138" 3.5mm 3.25" 82.6mm 1.18 lbs

SCF-SS30354 3" 3.54" 89.9mm 0.138" 3.5mm 3.94" 100.1mm 1.23 lbs
SCF-SS30360 3" 3.60" 91.4mm 0.138" 3.5mm 3.94" 100.1mm 1.30 lbs
SCF-SS30368 3" 3.68" 93.5mm 0.138" 3.5mm 3.94" 100.1mm 1.43 lbs
SCF-SS30374 3" 3.74" 95.0mm 0.138" 3.5mm 3.94" 100.1mm 1.54 lbs
SCF-SS30382 3" 3.82" 97.0mm 0.138" 3.5mm 3.94" 100.1mm 1.70 lbs
SCF-SS30390 3" 3.90" 99.1mm 0.138" 3.5mm 3.94" 100.1mm 1.81 lbs
SCF-SS30398 3" 3.98" 101.1mm 0.138" 3.5mm 3.94" 100.1mm 1.96 lbs
SCF-SS30409 3" 4.09" 103.9mm 0.138" 3.5mm 3.94" 100.1mm 2.07 lbs

SCF-SS40457 4" 4.57" 116.1mm 0.158" 4.0mm 4.19" 106.4mm 2.20 lbs
SCF-SS40465 4" 4.65" 118.1mm 0.158" 4.0mm 4.19" 106.4mm 2.36 lbs
SCF-SS40472 4" 4.72" 119.9mm 0.158" 4.0mm 4.19" 106.4mm 2.51 lbs
SCF-SS40480 4" 4.80" 121.9mm 0.158" 4.0mm 4.19" 106.4mm 2.71 lbs
SCF-SS40488 4" 4.88" 124.0mm 0.158" 4.0mm 4.19" 106.4mm 2.91 lbs
SCF-SS40496 4" 4.96" 126.0mm 0.158" 4.0mm 4.19" 106.4mm 3.09 lbs
SCF-SS40508 4" 5.08" 129.0mm 0.158" 4.0mm 4.19" 106.4mm 3.26 lbs
SCF-SS40520 4" 5.20" 132.1mm 0.158" 4.0mm 4.19" 106.4mm 3.46 lbs
SCF-SS40531 4" 5.31" 134.9mm 0.158" 4.0mm 4.19" 106.4mm 3.64 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
