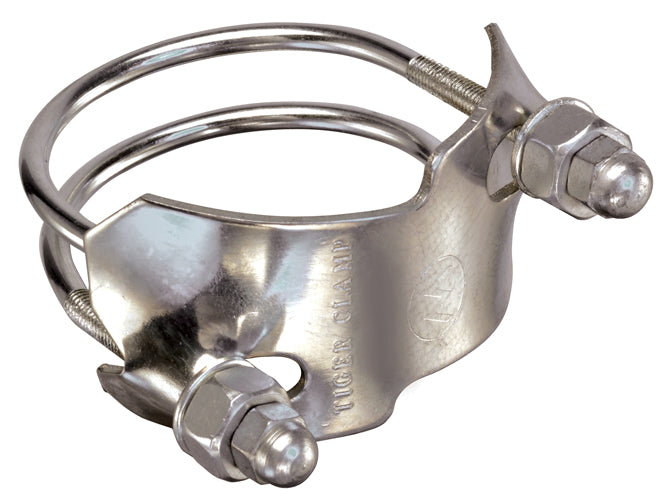

SDBC-SS-6 Tigerflex® by Kuriyama | SDBC-SS Series | Counterclockwise Spiral Double Bolt Clamp | 6" Size | 304 Stainless Steel

SDBC-SS-6 Tigerflex® by Kuriyama | SDBC-SS Series | Counterclockwise Spiral Double Bolt Clamp | 6" Size | 304 Stainless Steel

Save $15.09 Save $15.09
$72.86
$72.86 - $72.86
$72.86
$57.77
$57.77 - $57.77
$57.77

Kuriyama of America Inc.
Tigerflex® | SDBC Series | Counterclockwise Spiral Double Bolt Clamp | 304 Stainless Steel

Designed for use with hoses that have a convoluted cover or helix.

Spiral design allows for premium sealing between the convolutions or helix.
Specifications for Variant SKU: SDBC-SS-6 Kuriyama
Brand: Tigerflex
Series: SDBC-SS Series
Material(s): 304 Stainless Steel
Minimum Clamp I.D.: 6in

What are the Features?

  • Designed for use with hoses that have a convoluted cover or helix.
  • Spiral design allows for premium sealing between the convolutions or helix.
  • Hex nut for easy installation and cap nut to prevent injury from sharp bolt edges.
  • SDBC and SDBC-SS series have a counterclockwise left hand spiral design.

What are the Materials?

  • SDBC Series: Zinc Plated Carbon Steel.
  • SDBC-SS Series: 304 Stainless Steel.
  • 304 stainless steel spiral rod, saddle, washer, hex nut, cap nut

Notes:

  • Two or more Spiral Bolt Clamps are suggested for 3" ID and larger hoses.
  • Both hex nuts should be tightened equally to prevent leakage.
  • Suggested SDBC/SDBC-SS sizes to use with Tigerflex Metric sized hoses:
    • WT, WE 45M 1.77" ID - Suggested SDBC-2 and SDBC-SS-2
    • WT, WE 57M 2.24" ID - Suggested SDBC-2.25
    • WT, WE 60M 2.36" ID - Suggested SDBC-2.5 and SDBC-SS-2.5
  • CAUTION: Proper evaluation of holding power for each clamp must be determined for each individual application.
SDBC Series | Zinc Plated Carbon Steel
Part Number Size
(in)		 Maximum Torque
(ft lbs)		 Weight
(lbs)
SDBC-1.5 1-1/2" 6 0.18 lbs
SDBC-2 2" 6 0.36 lbs
SDBC-2.25 2-1/4" 6 0.40 lbs
SDBC-2.5 2-1/2" 8 0.48 lbs
SDBC-3 3" 8 0.66 lbs
SDBC-3.5 3-1/2" 8 0.70 lbs
SDBC-4 4" 24 1.02 lbs
SDBC-5 5" 24 1.76 lbs
SDBC-6 6" 30 2.00 lbs
SDBC-8 8" 30 2.76 lbs
SDBC-10 10" 30 3.46 lbs
SDBC-12 12" 30 4.14 lbs
SDBC-SS Series | 304 Stainless Steel
Part Number Size
(in)		 Maximum Torque
(ft lbs)		 Weight
(lbs)
SDBC-SS-1.5 1-1/2" 6 0.20 lbs
SDBC-SS-2 2" 6 0.40 lbs
SDBC-SS-2.5 2-1/2" 6 0.55 lbs
SDBC-SS-3 3" 8 0.73 lbs
SDBC-SS-3.5 3-1/2" 8 0.94 lbs
SDBC-SS-4 4" 24 1.12 lbs
SDBC-SS-5 5" 24 1.94 lbs
SDBC-SS-6 6" 30 2.20 lbs
SDBC-SS-8 8" 30 3.04 lbs
SDBC-SS-10 10" 30 3.81 lbs
SDBC-SS-12 12" 30 4.55 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
