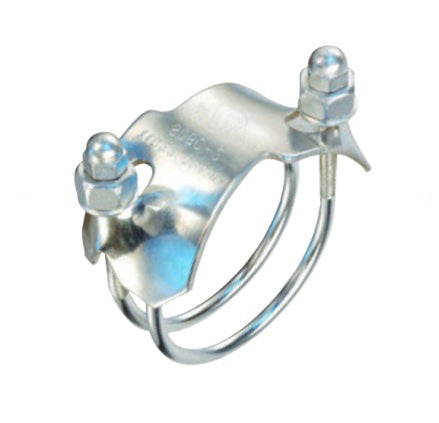

SDBCR-10 Tigerflex® by Kuriyama | SDBCR Series | Clockwise Spiral Double Bolt Clamp | 10" Size | Zinc Plated Carbon Steel

SDBCR-10 Tigerflex® by Kuriyama | SDBCR Series | Clockwise Spiral Double Bolt Clamp | 10" Size | Zinc Plated Carbon Steel

Save $13.74 Save $13.74
$37.02
$37.02 - $37.02
$37.02
$23.28
$23.28 - $23.28
$23.28

Kuriyama of America Inc.
Tigerflex® | SDBCR Series | Clockwise Spiral Double Bolt Clamp | Zinc Plated Carbon Steel

Designed for use with hoses that have a convoluted cover or helix.

Spiral design allows for premium sealing between the convolutions or helix.
Specifications for Variant SKU: SDBCR-10 Kuriyama
Brand: Tigerflex
Series: SDBCR Series
Material(s): Zinc Plated Carbon Steel
Minimum Clamp I.D.: 10in

What are the Features?

  • Designed for use with hoses that have a convoluted cover or helix.
  • Spiral design allows for premium sealing between the convolutions.
  • Hex nut for easy installation and cap nut to prevent injury from sharp bolt edges.
  • SDBCR series has a clockwise right hand spiral design.

What are the Materials?

  • Zinc Plated Carbon Steel.
  • 304 stainless steel spiral rod, saddle, washer, hex nut, cap nut.
Notes:
  • Two or more Spiral Bolt Clamps are suggested for 3" ID and larger hoses.
  • Both hex nuts should be tightened equally to prevent leakage.
  • CAUTION: Proper evaluation of holding power for each clamp must be determined for each individual application.
Part Number Size
(in)		 Maximum Torque
(ft lbs)		 Weight
(lbs)
SDBCR-1.5 1-1/2" 6 0.25 lbs
SDBCR-2 2" 6 0.36 lbs
SDBCR-3 3" 8 0.66 lbs
SDBCR-4 4" 24 1.02 lbs
SDBCR-5 5" 24 1.76 lbs
SDBCR-6 6" 30 2.00 lbs
SDBCR-8 8" 30 2.76 lbs
SDBCR-10 10" 30 3.45 lbs
SDBCR-12 12" 30 4.10 lbs
