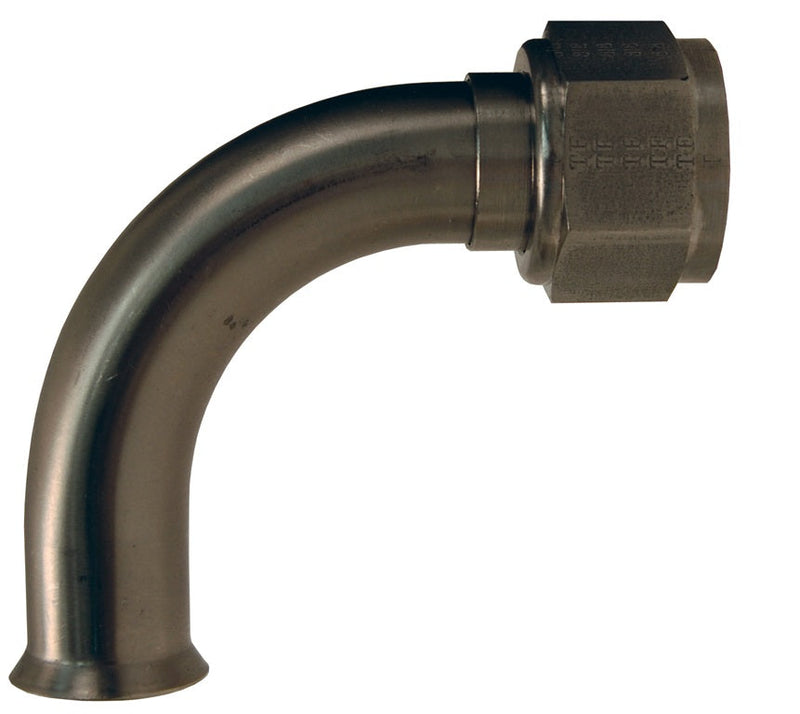

SFMF375-90 by Dixon Valve | Weld End Metal Hose Fitting | 90° Elbow | 9/16" Female SAE 37° JIC x 3/8" Tube OD | 304 Stainless Steel Nut & Sleeve

SFMF375-90 by Dixon Valve | Weld End Metal Hose Fitting | 90° Elbow | 9/16" Female SAE 37° JIC x 3/8" Tube OD | 304 Stainless Steel Nut & Sleeve

Save $38.46 Save $38.46
$96.15
$96.15 - $96.15
$96.15
$57.69
$57.69 - $57.69
$57.69

Dixon Valve
Weld End Metal Hose Fitting | 90° Elbow | Female SAE 37° JIC


Specifications for Variant SKU: SFMF375-90 Dixon
Shape (Orientation): 90 Degree
Material(s): 304 Stainless Steel, 316 Stainless Steel
Features:
  • 316 seamless stainless steel tubes
Safety Notes:
  • Pressure rating at 70°F (21°C)


304 Stainless Steel
Nut & Sleeve
Part Number		 Carbon Steel
Nut & Sleeve
Part		 Female
SAE 37° JIC		 Tube
O.D.		 Pressure
Rating PSI
at 70°F (21°)		 Dimensions Bend
Radius		 Tube
Wall
A B
SFMF250-90  - 7/16" - 20 1/4" 5000 PSI 1.000" 1.000" 0.375" .049"
SFMF375-90 FMF375-90 9/16" - 18 3/8" 4500 PSI 1.250" 1.250" 0.500" .049"
SFMF500-90  - 3/4" - 16 1/2" 4000 PSI 1.830" 1.830" 1.000" .049"
SFMF750-90 FMF750-90 1-1/16" - 12 3/4" 2600 PSI 2.350" 2.350" 1.500" .049"
SFMF1000-90 FMF1000-90 1-5/16" - 12 1" 2500 PSI 3.100" 3.100" 2.000" .049"
SFMF1250-90 FMF1250-90 1-5/8" - 12 1-1/4" 2050 PSI 3.500" 3.500" 2.000" .065"
