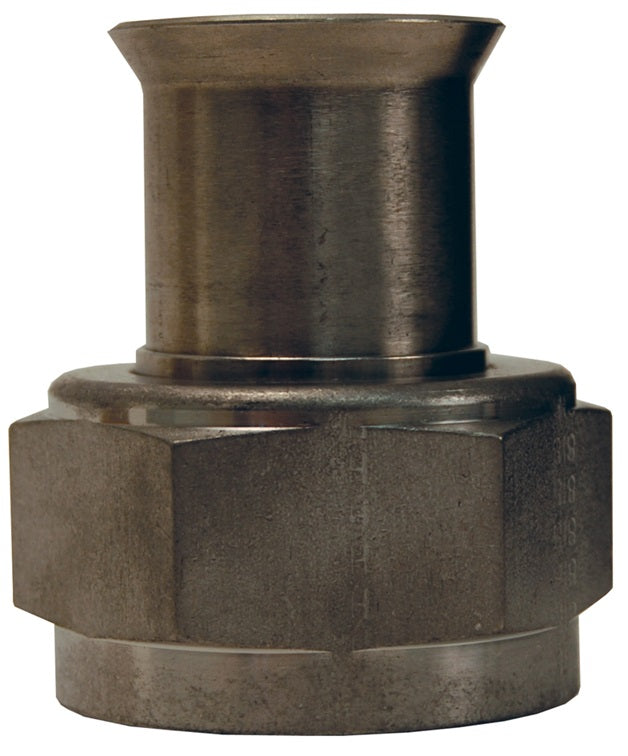

SFMF375 by Dixon Valve | Weld End Metal Hose Fitting | 9/16" Female SAE 37° JIC x 3/8" Tube OD | 304 Stainless Steel Nut & Sleeve

Name: SFMF375 by Dixon Valve | Weld End Metal Hose Fitting | 9/16" Female SAE 37° JIC x 3/8" Tube OD | 304 Stainless Steel Nut & Sleeve
Brand: Dixon
SKU: SFMF375 Dixon
Price: 45.27 USD
Availability: InStock

Save $30.18

$75.45

$75.45 - $75.45

$75.45

$45.27

$45.27 - $45.27

$45.27

Dixon Valve
Weld End Metal Hose Fitting | Straight | Female SAE 37° JIC

Quantity

Specifications for Variant SKU: SFMF375 Dixon
Shape (Orientation):	Straight
Material(s):	304 Stainless Steel, 316 Stainless Steel

Features:
316 seamless stainless steel tubes
Safety Notes:
Pressure rating at 70°F (21°C)


304 Stainless Steel Nut & Sleeve Part Number	Carbon Steel Nut & Sleeve Part	Female SAE 37° JIC	Tube O.D.	Pressure Rating PSI at 70°F (21°)	Dimension L	Tube Wall
SFMF375	FMF375	9/16" - 18	3/8"	5550	1.500"	.049"
SFMF500	FMF500	3/4" - 16	1/2"	4050	1.500"	.049"
SFMF750	FMF750	1-1/16" - 12	3/4"	2600	1.500"	.049"
SFMF1000	FMF1000	1-5/16" - 12	1"	1950	2.000"	.049"
SFMF1250	FMF1250	1-5/8" - 12	1-1/4"	2050	2.375"	.065"
SFMF1500	-	1-7/8" - 12	1-1/2"	1700	2.375"	.065"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
