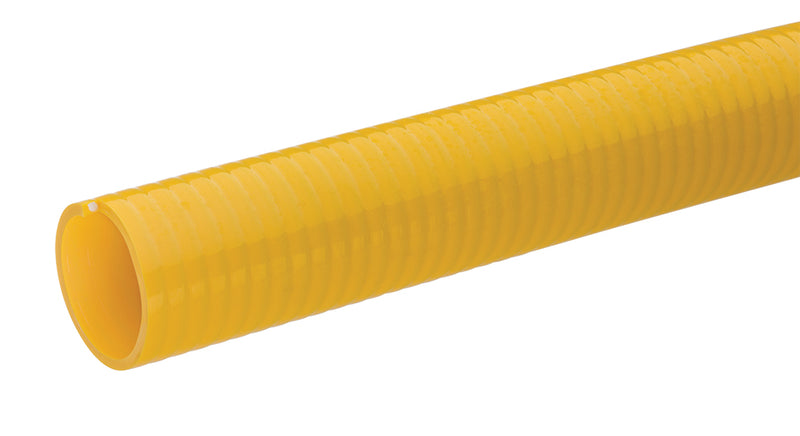

SG150X100 Tigerflex® SOLARGUARD™ by Kuriyama | SG™ Series | Liquid Suction Hose with High UV Resistance | PVC | 1-1/2" ID | 1.78" OD | 100ft Length

SG150X100 Tigerflex® SOLARGUARD™ by Kuriyama | SG™ Series | Liquid Suction Hose with High UV Resistance | PVC | 1-1/2" ID | 1.78" OD | 100ft Length

Save $405.73 Save $405.73
$621.73
$621.73 - $621.73
$621.73
$216.00
$216.00 - $216.00
$216.00
p>Kuriyama of America Inc.
Tigerflex® | SOLARGUARD™ SG™ Series | Liquid Suction Hose with High UV Resistance | PVC

Engineered for agricultural and construction use.

Ideal for liquid fertilizer transfer, irrigation and air seeder lines, dewatering and trash pumps, and standard-duty water suction.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: SG150X100 Kuriyama | 100 |
Brand: SOLARGUARD, Tigerflex
Series: SG Series
Hose Color(s): Yellow
Internal Diameter: 1.50in
Outer Diameter: 1.78in
Tubing Construction: PVC
UV-Resistant PVC Suction Hose

Kuriyama Tigerflex™ SG Series

Safety-yellow PVC suction hose with advanced UV protection for agricultural liquid fertilizer, irrigation, dewatering, trash-pump and standard-duty water-suction applications.

★

UV Protection

Solarguard material is formulated to resist cracking from UV exposure

✓

Safety Yellow

High-visibility color helps reduce trip and run-over risks

⚙

PVC Helix

Rigid reinforcement supports standard-duty suction service

☰

Smooth Cover

Provides a smooth surface for banding

1

What is this product used for?
  • Agricultural liquid fertilizer
  • Air seeder lines
  • Irrigation lines
  • Rental and construction dewatering pumps
  • Trash pumps
  • Standard-duty water suction
2

What are the key specifications?
Tube

Flexible PVC

Reinforcement

Rigid PVC helix

Cover

Smooth outer cover

Temperature Range

-4°F (-20°C) to +150°F (+65°C)

Compliance

Phthalate free

Country of Origin

Made in the USA

3

What are the main product features?
  • Advanced UV Protection — The hose material is specially formulated to resist cracking caused by exposure to damaging UV light.
  • High Tensile-Strength Retention — Testing showed that the Solarguard material retained 97% of its original tensile strength after prolonged UV exposure, compared with 55% retention for similar PVC hoses.
  • Safety-Yellow Color — Provides high visibility on site and helps reduce the risk of tripping over or driving over the hose.
  • Smooth Outer Cover — Provides a smooth surface for banding.
  • Made in the USA — Manufactured in the United States.
4

Which sizes and lengths are available?
Part Number Inside Diameter Outside Diameter Working Pressure Vacuum Rating Minimum Bending Radius Length Weight
in mm in mm at 68°F at 104°F at 68°F at 104°F at 68°F ft lbs/ft
SG150X100 1-1/2" 38.4 1.78" 45.2 65 PSI 45 PSI 28 in Hg 24 in Hg 5" 100 0.38
SG200X100 2" 51.1 2.40" 59.0 60 PSI 40 PSI 28 in Hg 24 in Hg 6" 100 0.56
SG300X100 3" 76.7 3.41" 86.5 55 PSI 35 PSI 26 in Hg 22 in Hg 9" 100 1.00
SG400X100 4" 102.4 4.44" 112.8 50 PSI 35 PSI 26 in Hg 22 in Hg 15" 100 1.70
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide

Review the manufacturer specifications guide for additional compliance, construction and application information.

i
UV-performance information is based on independent third-party test reports believed to be complete and accurate. No warranty is expressed or implied because application conditions such as temperature, stress, strain and chemical exposure vary. The actual service temperature range and product service life may also vary depending on the application, operating conditions and material being conveyed.

How is this product sold?

Available in 100-foot lengths.
