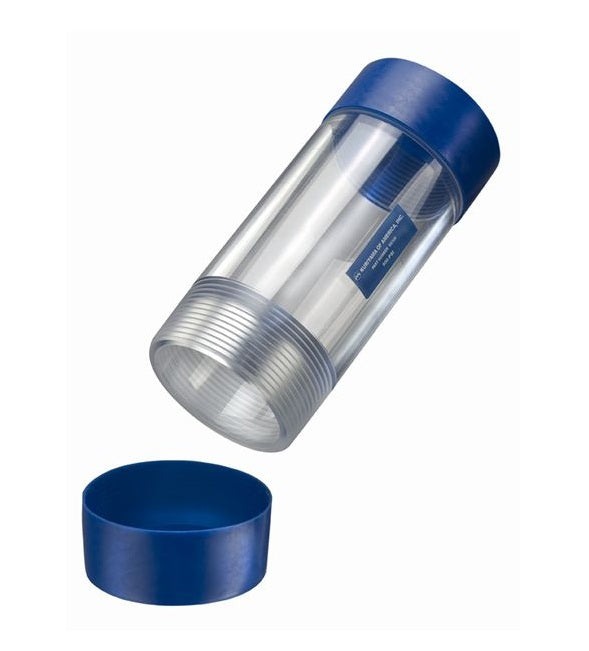

SG300 by Kuriyama | SG Series | Sight Glass | 3" Male NPT | Polycarbonate

SG300 by Kuriyama | SG Series | Sight Glass | 3" Male NPT | Polycarbonate

Save $17.06 Save $17.06
$113.82
$113.82 - $113.82
$113.82
$96.76
$96.76 - $96.76
$96.76

Kuriyama of America Inc.
SG Series | Sight Glass | Male NPT Threads

Allows for viewing of material flowing through the glass at all times.

NPT threads allow for connection with an AL-D and AL-A camlocks.
Specifications for Variant SKU: SG300 Kuriyama
Series: SG Series
Shape (Orientation): Straight
Ends Configuration: 3in Male NPT, 3in Male NPT, Some Ends Match

What are the Features?

  • Allows for viewing of material flowing through the glass at all times.
  • Made of tough Polycarbonate material.
  • Supplied with protective caps to cover threads.
  • NPT threads allow for connection with an AL-D and AL-A camlocks.

What are the Materials?

  • Polycarbonate material: -50°F (-46°C) to +185°F (+85°C)
Part Number Size
(in)		 Length
(in)		 Wall Thickness
(in)		 PSI Rating
at 70°F
(PSI)		 Burst Rating
at 70°F
(PSI)		 Weight
Each
(lbs)
SG200 2" 8" 0.40" 500 PSI 2700 PSI 0.87 lbs
SG300 3" 8" 0.40" 500 PSI 1900 PSI 1.08 lbs
SG400 4" 8" 0.40" 500 PSI 1900 PSI 2.25 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
