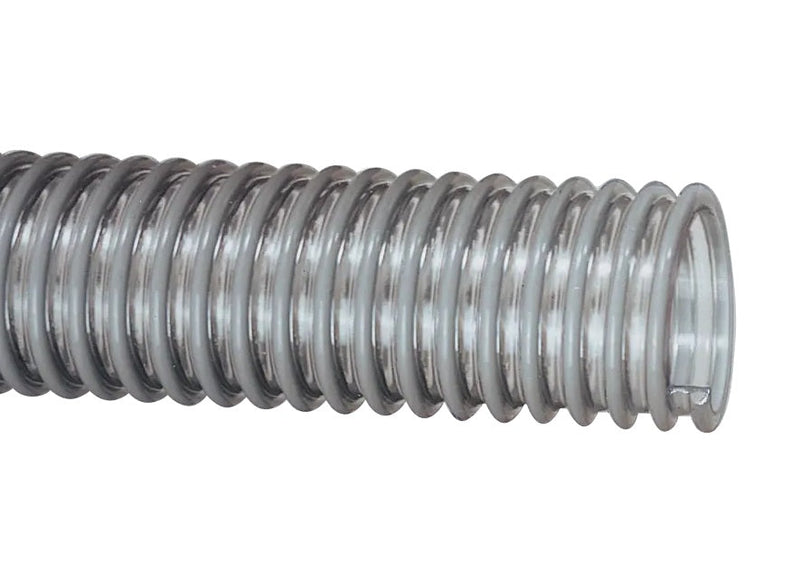

SH500X100 Tigerflex® by Kuriyama | SH™ Series | Standard-Duty Liquid Suction Hose | PVC | 5" ID | 5.57" OD | 100ft Length

SH500X100 Tigerflex® by Kuriyama | SH™ Series | Standard-Duty Liquid Suction Hose | PVC | 5" ID | 5.57" OD | 100ft Length

$0.00 - $0.00
$0.00
$1,789.20
$1,789.20 - $1,789.20
$1,789.20
p>Kuriyama of America Inc.
Tigerflex® | SH™ Series | Standard-Duty Liquid Suction Hose | PVC

Designed for light-duty fluid and material handling.

Suited for drain lines, dust collection, gold dredging, and standard-duty water suction applications.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: SH500X100 Kuriyama | 100 |
Brand: Tigerflex
Series: SH Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 5in
Outer Diameter: 5.57in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection
Applications: Drain lines.
Dust collection.
Gold dredging.
Water suction - standard duty.
Tube: PVC. Reinforcement: Rigid PVC helix.
Cover: - Service Temperature Range: WH Series: -4ºF (-20ºC) to +150ºF (+65ºC)
SH Series: -40ºF (-40ºC) to +150ºF (+65ºC)
(Actual service temperature range is application dependent)
Specifications: Phthalate Free (10)
RoHS (11)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • "Cold-Flex" Materials - Hose remains flexible in subzero. (SH only)
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Convoluted Outer Cover - Provides increased hose flexibility.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
60ft		 Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
- WH100X100 1" 25.4mm 1.22" 31.0mm 45 PSI 15 PSI Full 24 in Hg 1" 0.15 lbs
- WH125X100 1-1/4" 31.8mm 1.54" 39.2mm 40 PSI 12 PSI Full 24 in Hg 1" 0.20 lbs
- WH150X100 1-1/2" 38.1mm 1.80" 45.7mm 40 PSI 12 PSI Full 24 in Hg 1-1/2" 0.25 lbs
- WH200X100 2" 50.8mm 2.32" 58.7mm 35 PSI 10 PSI 26 in Hg 20 in Hg 2-1/2" 0.31 lbs
- SH250X100 2-1/2" 63.5mm 9.97" 75.5mm 30 PSI 9 PSI 24 in Hg 18 in Hg 3" 0.43 lbs
- SH300X100 3" 76.2mm 3.48" 88.4mm 25 PSI 7 PSI 24 in Hg 18 in Hg 4" 0.64 lbs
- SH400X100 4" 101.6mm 4.52" 114.8mm 25 PSI 7 PSI 18 in Hg 14 in Hg 6" 1.06 lbs
- SH500X100 5" 127.0mm 5.57" 141.5mm 20 PSI 6 PSI 16 in Hg 12 in Hg 10" 1.47 lbs
- SH600X100 6" 153.4mm 6.69" 169.9mm 20 PSI 6 PSI 14 in Hg 10 in Hg 12" 2.27 lbs
SH800X60 - 8" 204.8mm 8.86" 225.0mm 10 PSI 3 PSI 12 in Hg 8 in Hg 24" 3.34 lbs
