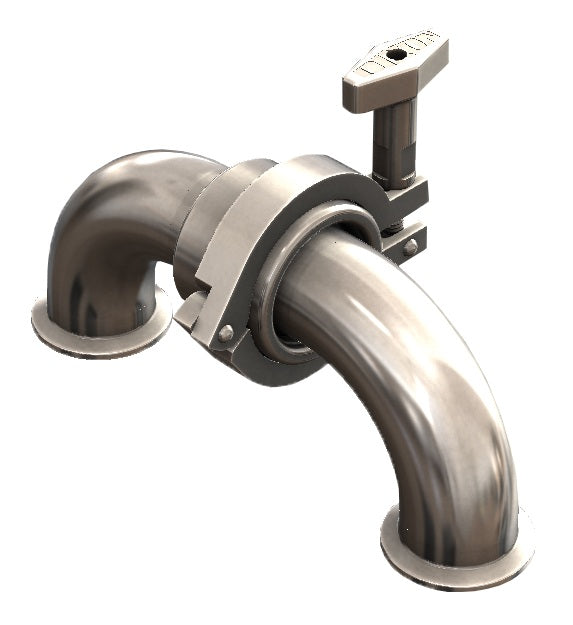

SJSS150SCC140 Dixon Valve SJSS Series Sanitary Swivel - 1-1/2" - Style 40 - Clamp Ends - Silicone - 316L Stainless Steel

SJSS150SCC140 Dixon Valve SJSS Series Sanitary Swivel - 1-1/2" - Style 40 - Clamp Ends - Silicone - 316L Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings SJSS Series Sanitary Swivel: Style 40 - Clamp Ends - Silicone - 316L Stainless Steel

Used to prevent hoses from kinking or making a flow path change on a flow plate.

3A COP certified
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: SJSS150SCC140 Dixon
Shape (Orientation): 180 Degree
Material(s): 316L Stainless Steel
Seal Material(s): Silicone
Construction:
  • 316L Stainless Steel
  • PTFE with Silicone seals
  • Sanitary finish ID and OD
Literature:
Part Number Size Pressure Rating Weight Repair Kit
Part Number
SJSS100SCC140 1" 500 PSI @ 70°F
300 PSI @ 250°F		 1.7780 SJSS-REPAR-S100
SJSS150SCC140 1-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 2.3365 SJSS-REPAR-S150
SJSS200SCC140 2" 500 PSI @ 70°F
300 PSI @ 250°F		 3.2846 SJSS-REPAR-S200
SJSS250SCC140 2-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 4.6766 SJSS-REPAR-S250
SJSS300SCC140 3" 500 PSI @ 70°F
300 PSI @ 250°F		 7.0138 SJSS-REPAR-S300
SJSS400SCC140 4" - - SJSS-REPAR-S400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
