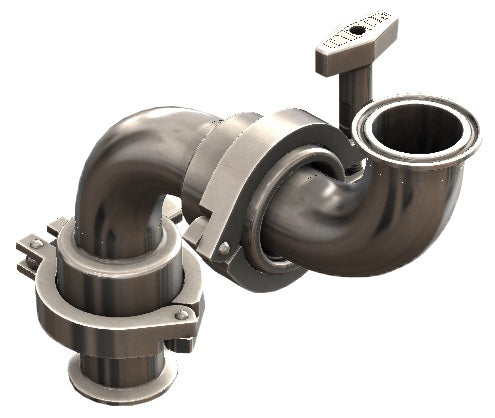

SJSS300SCC150 Dixon Valve SJSS Series Sanitary Swivel - 3" - Style 50 - Clamp Ends - Silicone - 316L Stainless Steel

SJSS300SCC150 Dixon Valve SJSS Series Sanitary Swivel - 3" - Style 50 - Clamp Ends - Silicone - 316L Stainless Steel

Save $1,339.30 Save $1,339.30
$3,348.25
$3,348.25 - $3,348.25
$3,348.25
$2,008.95
$2,008.95 - $2,008.95
$2,008.95

Dixon Sanitary Fittings SJSS Series Sanitary Swivel: Style 50 - Clamp Ends - Silicone - 316L Stainless Steel

Used to prevent hoses from kinking or making a flow path change on a flow plate.

3A COP certified
Specifications for Variant SKU: SJSS300SCC150 Dixon
Shape (Orientation): Non-Standard Orientation
Material(s): 316L Stainless Steel
Seal Material(s): Silicone
Construction:
  • 316L Stainless Steel
  • PTFE with Silicone seals
  • Sanitary finish ID and OD
Literature:
Part Number Size Pressure Rating Weight Repair Kit
Part Number
SJSS100SCC150 1" 500 PSI @ 70°F
300 PSI @ 250°F		 2.9265 SJSS-REPAR-S100
SJSS150SCC150 1-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 3.9462 SJSS-REPAR-S150
SJSS200SCC150 2" 500 PSI @ 70°F
300 PSI @ 250°F		 5.2733 SJSS-REPAR-S200
SJSS250SCC150 2-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 7.4323 SJSS-REPAR-S250
SJSS300SCC150 3" 500 PSI @ 70°F
300 PSI @ 250°F		 11.2087 SJSS-REPAR-S300
SJSS400SCC150 4" - - SJSS-REPAR-S400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
