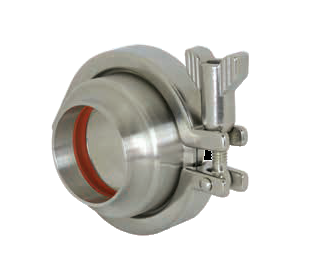

SJSS400BB-20 Dixon Valve SJSS Series Swivel - 4" Straight Weld x Weld - Style 20 - 316L Stainless Steel

SJSS400BB-20 Dixon Valve SJSS Series Swivel - 4" Straight Weld x Weld - Style 20 - 316L Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings
SJSS Series Swivel - Straight Weld x Weld - Style 20 - 316L Stainless Steel
Specifications for Variant SKU: SJSS400BB-20 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): PTFE
Features:
  • Sanitary Finish ID and OD.
Materials:
  • 316L Stainless Steel
  • Seals: PTFE with Silicone
Part Number Size Dimensions Pressure Rating
PSI @ 70°F (21°C)		 Pressure Rating
PSI @ 250°F (121°C)
A B C
SJSS100BB-20 1" 2.56" 2.00" 1.00" 500 PSI 300 PSI
SJSS150BB-20 1-1/2" 2.56" 2.00" 1.50" 500 PSI 300 PSI
SJSS250BB-20 2-1/2" 3.44" 2.00" 2.50" 400 PSI 200 PSI
SJSS300BB-20 3" 3.94" 2.00" 3.00" 350 PSI 175 PSI
SJSS400BB-20 4" 5.08" 2.94" 4.00" 300 PSI 150 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
