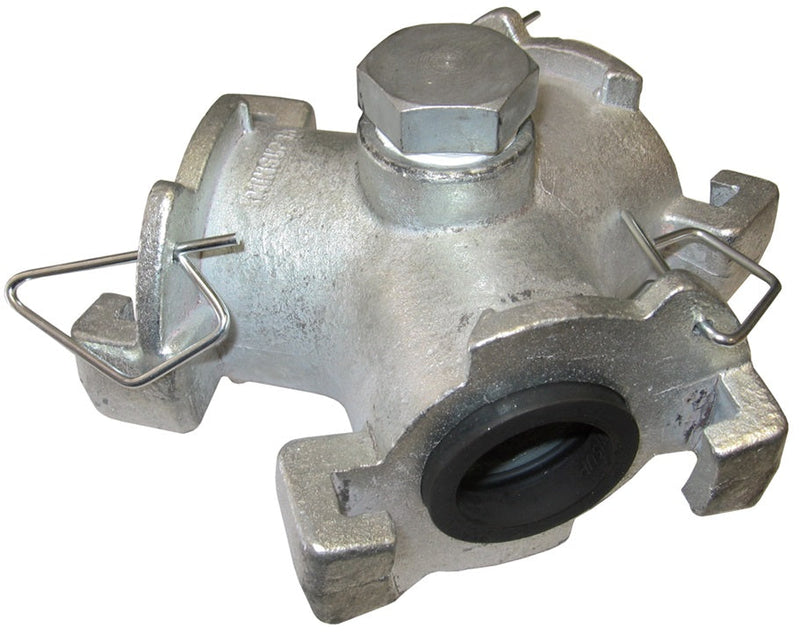

SL10 Sure-Lock® by Dixon Valve | Pneumatic Fitting | Three Way Connector | Medium Head | Chicago Style | 1-1/2" to 2" Size | Iron

Save $61.97

$154.93

$154.93 - $154.93

$154.93

$92.96

$92.96 - $92.96

$92.96

Dixon Valve
Sure-Lock® Coupling | Three Way Connector | Chicago Style

Coupling for air only, commonly used in construction and mining; excels in services where ease, economy, safety, and speed are paramount.

Specifications for Variant SKU: SL10 Dixon
Brand:	Sure-Lock
Shape (Orientation):	Y
Ends Configuration:	2-Lug Chicago, 2-Lug Chicago, 2-Lug Chicago, Some Ends Match
Material(s):	Iron

Features:
Pressure-activated gasket allows for easy coupling (less than 15 lbs. of force is required to connect the coupling gaskets seal upon introduction of line pressure).
Construction:
Body: SG iron AS1831 400-250-12. Bellows seal: natural rubber. Safety pin is supplied with each coupling.
Specifications:
Working pressure: 200 PSI at ambient temperature 70°F (21°C)
Safety Notes:
Safety pin is supplied with each coupling and is required as a safety precaution. Pressure rating is based on use with band clamps.

Part Number	Head	Size
SL09	Small	1/2" to 1"
SL10	Medium (Medium blank end comes with 1" NPT pipe plug)	1-1/2" to 2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
