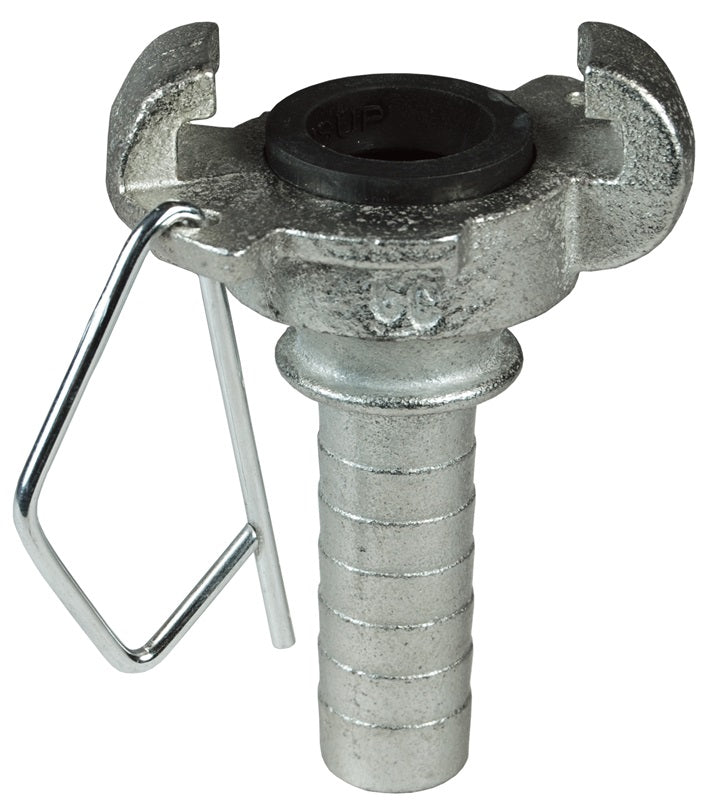

SL200H Sure-Lock® by Dixon Valve | Pneumatic Fitting | Medium Head Coupling | Chicago Style x 2" Hose Barb | Iron

SL200H Sure-Lock® by Dixon Valve | Pneumatic Fitting | Medium Head Coupling | Chicago Style x 2" Hose Barb | Iron

Save $21.62 Save $21.62
$54.05
$54.05 - $54.05
$54.05
$32.43
$32.43 - $32.43
$32.43

Dixon Valve
Sure-Lock® Coupling | Chicago Style x Hose Barb

Coupling for air only, commonly used in construction and mining; excels in services where ease, economy, safety, and speed are paramount.
Specifications for Variant SKU: SL200H Dixon
Brand: Sure-Lock
Shape (Orientation): Straight
Ends Configuration: 2-Lug Chicago, 2in Hose Barb
Material(s): Iron
Features:
  • Pressure-activated gasket allows for easy coupling (less than 15 lbs. of force is required to connect the coupling gaskets seal upon introduction of line pressure).
Construction:
  • Body: SG iron AS1831 400-250-12.
  • Bellows seal: natural rubber.
  • Safety pin is supplied with each coupling.
Specifications:
  • Working pressure: 200 PSI at ambient temperature 70°F (21°C)
Safety Notes:
  • Safety pin is supplied with each coupling and is required as a safety precaution.
  • Pressure rating is based on use with band clamps.
Part Number Head Size
SL038H Small 3/8"
SL050H Small 1/2"
SL075H Small 3/4"
SL100H Small 1"
SL150H Medium 1-1/2"
SL200H Medium 2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
