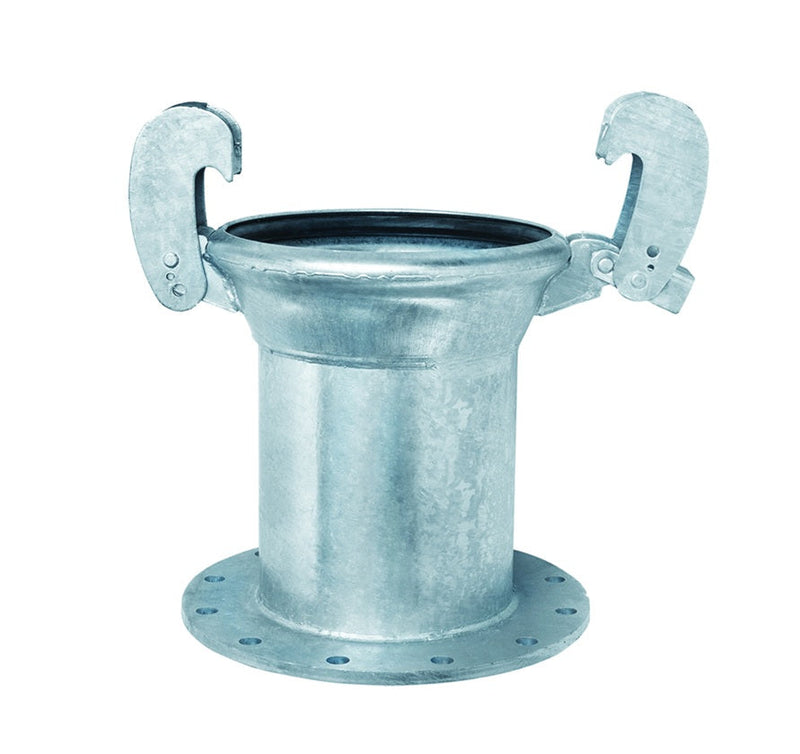

SLA-FLF1200 by Kuriyama | SLA-FLF Series | SPHERE LOCK™ Bauer Coupling | Type A | 12" Female Socket x 12" 150# ASA Flange | Galvanized Steel

Save $212.25

$876.38

$876.38 - $876.38

$876.38

$664.13

$664.13 - $664.13

$664.13

Kuriyama of America Inc.
SPHERE LOCK™ Bauer Coupling with Connection Ring | Type A | SLA-FLF Series | Female Socket x 150 # ASA Flange | Galvanized Steel

For the transfer of freshwater or wastewater in agricultural, construction, septic, mining and other industrial applications.

Specifications for Variant SKU: SLA-FLF1200 Kuriyama
Brand:	SPHERE LOCK
Series:	SLA-FLF Series
Shape (Orientation):	Straight
Ends Configuration:	12in Female Bauer - Type A, 12in 150# Flange
Material(s):	Galvanized Steel
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Features?

Sphere Lock couplings, also referred to as ball and socket couplings, consist of male (ball) and female (socket) ends.
The rounded male end nests in the concave female end, which contains a Buna gasket for sealing.
The connection is tightened by pushing down on a lever or bar.
Highly durable, with excellent resistance to impacts and vibration, making them ideal for highly demanding outdoor applications.
Able to handle full vacuum and higher pressures than standard cam-lock couplings.
Allows for greater ease when connecting than most other coupling types. Whereas most other couplings must be aligned perfectly straight, Sphere Lock couplings can connect at angles of up to 30°, which is beneficial when conditions make a perfectly straight connection difficult.

What are the Materials?

High-grade, high-tensile, hot dipped galvanized steel.
Buna Gasket.

What is the Service Temperature Range?

-40°F (-40°C) to +250°F (+121°C)

Part Number	Size (in)	PSI Rating at 70°F	Number of Flange Bolt Holes	Flange Thickness	Weight Each (lbs)
SLA-FLF1000	10"	72 PSI	12	0..59"	41.00 lbs
SLA-FLF1200	12"	72 PSI	12	0.59"	63.23 lbs
